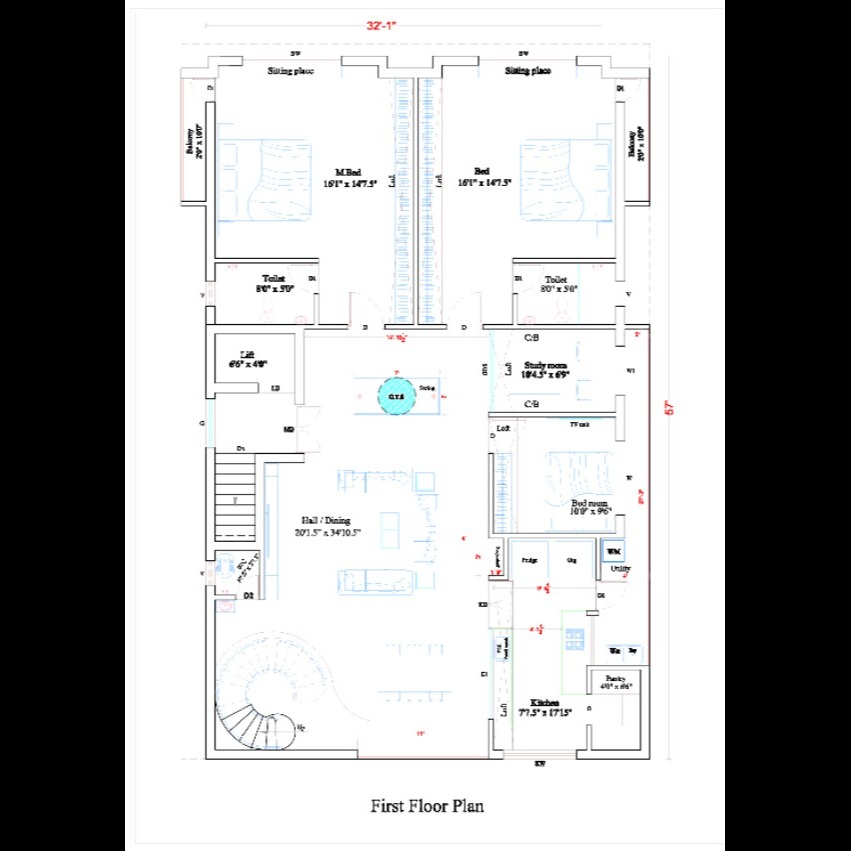

First floor plan details : A First Floor Plan is a technical layout drawing of the first floor of a building, showing rooms, walls, doors, windows, and other structural details, similar to a ground floor plan but for the floor above ground. 🏠📐
📋 Main Details in a First Floor Plan
1️⃣ Room Layout
Shows all functional spaces on the first floor.
Common rooms:
- Bedrooms (Master / Kids / Guest)
- Bathrooms / Toilets
- Balcony / Terrace
- Drawing / Family Lounge / Study Room
- Staircase landing
- Utility / Storage areas
Example layout (schematic):
------------------------------------------------- | BALCONY / TERRACE | |-------------------------------------------------| | MASTER BEDROOM | |-----------|-------------------|-----------------| | BEDROOM | FAMILY LOUNGE | BEDROOM | |-----------|-------------------|-----------------| | TOILET | STAIRCASE LANDING | UTILITY | -------------------------------------------------
2️⃣ Wall Thickness
Shows internal and external wall sizes, usually same as ground floor unless modified.
- External walls: 230 mm (9 inch)
- Internal walls: 115 mm (4.5 inch)
3️⃣ Doors and Windows
- Doors: D1, D2… with size in mm
- Windows: W1, W2… with size in mm
- Ventilators for air circulation
4️⃣ Dimensions
- Room length and width
- Distance between walls
- Stair width and landing size
- Balcony / terrace dimensions
Example:
- Master Bedroom: 14' × 16'
- Kids Bedroom: 10' × 12'
- Family Lounge: 12' × 15'
5️⃣ Staircase Position
- Shows staircase alignment with ground floor
- Includes landing and railing details
6️⃣ Balcony / Terrace
- Dimensions and railing positions
- Doors leading to balcony
7️⃣ Column & Beam Layout (if RCC construction)
- Column positions (same as ground floor if columns continue)
- Beam layout across rooms
8️⃣ North Direction
- North arrow for orientation
9️⃣ Floor Levels
- Finished floor level (FFL)
- Floor-to-floor height
