Small size Basic Schematic drawing need and details :
Here’s a full, practical explanation:
🧱 1. What is a Small Size Basic Schematic Drawing?
A basic schematic drawing is the first-level concept plan for a house or building.
It’s a simple line layout (not a detailed architectural drawing) that shows:
- The shape and size of the building,
- The orientation (North, East, South, West),
- The placement of rooms (living, bedroom, kitchen, toilet, etc.),
- The setbacks, parking, and entry/exit.
It’s usually made before detailed design or municipal submission — to fix orientation, space use, and Vastu compliance.
📌 2. Why You Need a Basic Schematic Drawing
Purpose Description Vastu Planning Ensures all rooms align with natural energies — e.g., kitchen in SE, master bed in SW, etc.Space Optimization Best use of a small plot area by efficient layout. Municipal Compliance Helps check if design fits bye-law norms (setbacks, open space).Client Discussion Easy for owner/architect to visualize before making a final plan.Cost Estimation Acts as a reference for preliminary costing.
📐 3. What Details It Should Include

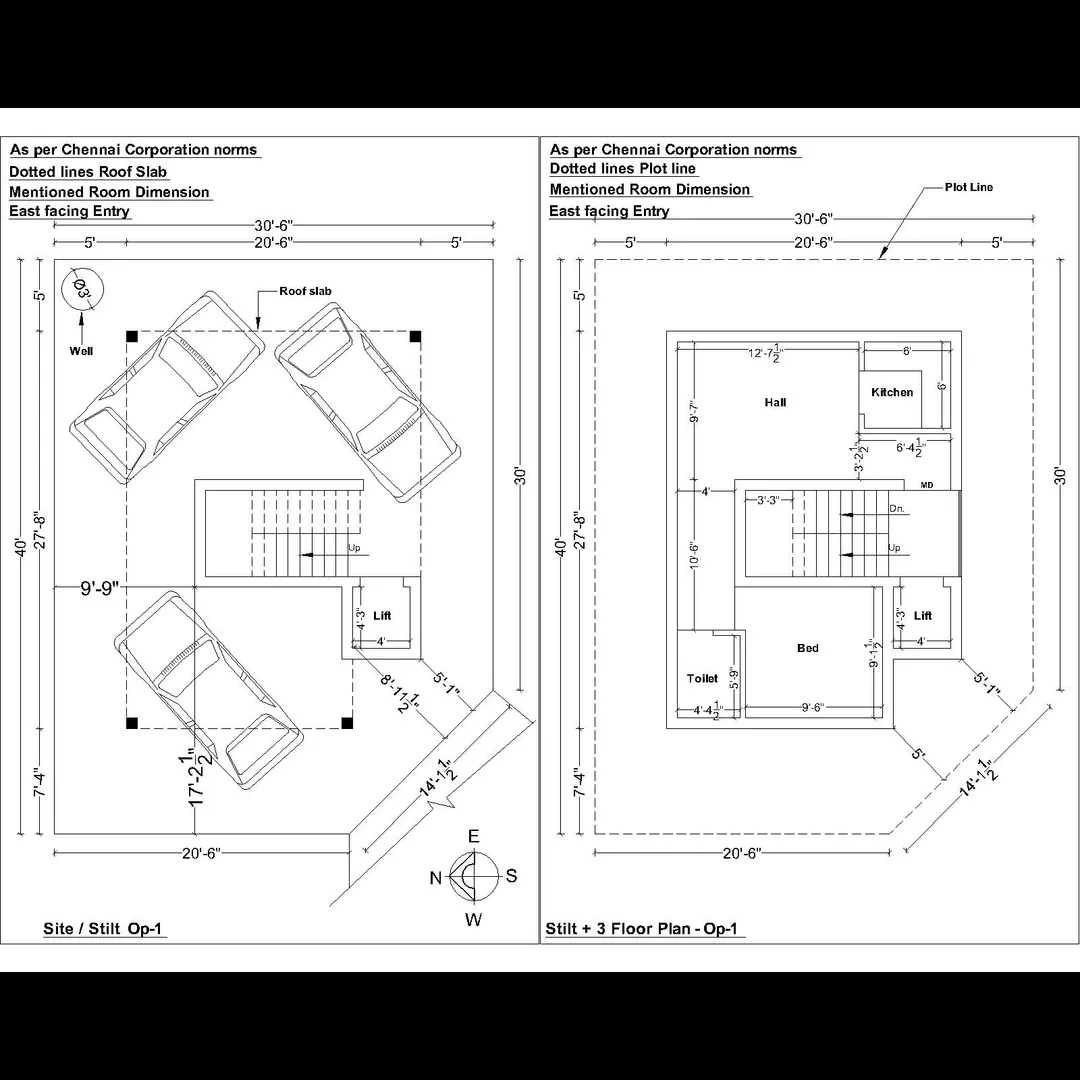

A small schematic drawing (for, say, a 30’×40’ or 20’×40’ plot) generally includes:
Drawing Element Description Plot boundary Outline of the site with measurements. Setbacks Margins on all sides as per local rules (e.g., Chennai norms).Compass/North mark For Vāstu orientation. Entry Gate Usually East or North direction. Parking area / Stilt floor Space for car/scooter parking. Staircase position Generally South or West side. Room names and dimensions Living, Bedroom, Kitchen, Toilet, etc. Doors & windows placement East/North preferred for light and energy. Water sources Sump in NE, overhead tank in SW, septic in NW. Open area/landscaping Front garden or courtyard if possible.
🧭 4. Vastu - Based Schematic Guidelines (Small House)
Zone Function (Ideal as per Vastu) Example Placement North-East (Eshanya) Puja, Living, Entrance Main door, sit-out South-East (Agni)Kitchen, fire-based work Kitchen / stove area South-West (Nairitya) Master Bedroom Master bedroom North-West (Vayu)Guest/Children room, toilets Bedroom /toilet Centre (Brahmasthan) Keep open for air / light Lobby or open space
A small-size schematic drawing typically includes:
- Title block (Project name, plot size, direction)
- North arrow
- Room labels & approximate sizes
- Setback lines
- Road name & facing direction
- Legend for symbols (door, window, wall)
