Toto spares, Toto Parts, Toto spare code no : MB002R.
ere are the complete details and uses of TOTO spare MB002R:

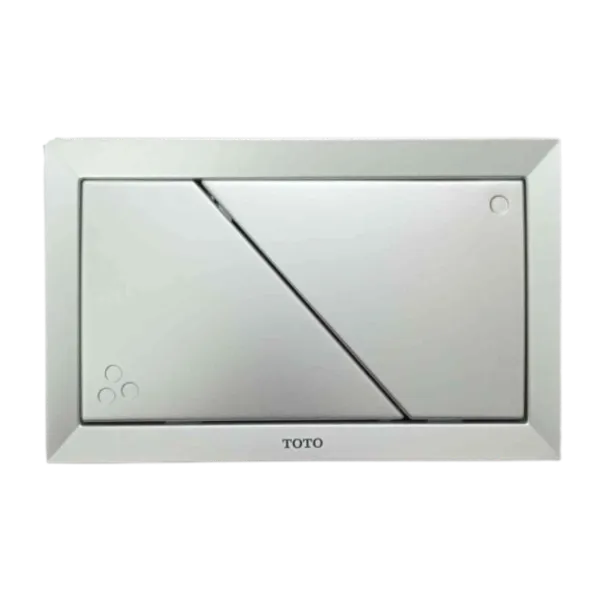

🔧 MB002R – Product Details
- Part code: MB002R
- Type: Flush panel (push button plate)
- Category: Concealed cistern / flushing system accessory
- Material: ABS / plastic with chrome finish
- Size: Approx. 235 × 18 × 150 mm
- Mounting: Wall-mounted (for concealed tanks)
🚽 Main Use
✔️ Flush control panel
- Installed on the wall above concealed (in-wall) cistern
- Used to activate toilet flushing
✔️ Dual flush operation
- Typically has two buttons:
- Small flush (≈3L)
- Full flush (≈6L)
👉 Helps save water by selecting the required flush volume.
⚙️ Where it is used
- TOTO concealed tank systems
- Wall-hung or floor-mounted toilets with in-wall cistern
- Common in:
- Modern bathrooms
- Hotels & commercial installations
🧩 How it works
- When you press the panel:
- It transfers motion to the flush actuator rods/mechanism
- Opens the flush valve inside the concealed tank
- Releases water into the toilet bowl
👉 It is the external user interface of the flushing system.
✨ Key Features
- Slim, modern design (aesthetic finish)
- Easy access panel (can be removed for servicing)
- Compatible with specific TOTO concealed cisterns
- Smooth push-button operation
🛠️ When to replace
You may need MB002R if:
- Buttons are not responding
- Flush works intermittently
- Panel is cracked / damaged
- Buttons get stuck or don’t return
🔄 Related / compatible parts
- Concealed cistern tanks (e.g., WH010 / WH013 series)
- Internal flush valve & actuator rods
- Other TOTO flush panels (MB170P, etc.)
⚠️ Important notes
- Must match the exact cistern model
- Not all TOTO panels are interchangeable
- Internal mechanism (rods/valve) is separate from panel
👍 Simple Summary
- MB002R = TOTO wall-mounted dual flush panel
- Used for concealed cistern toilets
- Controls 3L / 6L flushing
- Essential visible part of the flushing system.
