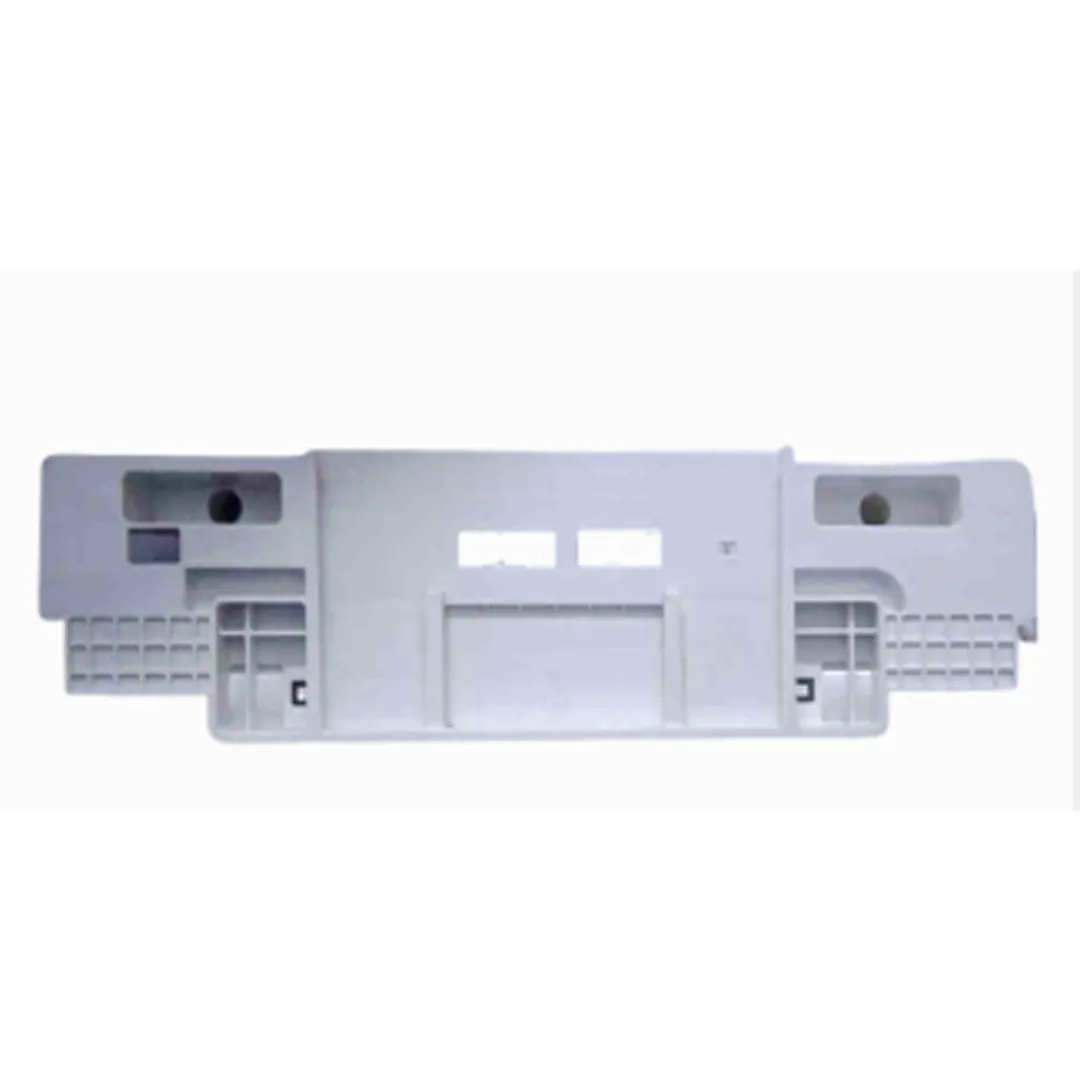

Toto spares, Toto parts, Toto spare parts, Spare code no : TC501-H5,
Here’s what I found about TOTO TC501‑H5 (or the closely related model TC501CVK) and also guidance on how you can get complete spare / functional part details.
What I found: TC501 / TC501CVK
- TOTO Europe lists TC501CVK as a removable, soft‑closing WC seat (with hinges) for wall‑hung toilets. TOTO
- It is designed to be easily detached (quick release) for cleaning. TOTO
- Corrosion‑resistant stainless steel hinges are a feature. TOTO
- Dimensions: 396 × 575 × 67 mm (W × D × H) for the seat cover unit. TOTO
- Material: Urea resin (the seat / cover). TOTO
- It is marked “discontinued” in the TOTO Europe product listing. TOTO
- In TOTO India / TOTO spares listings (e.g. TOTO Chennai spares), TC501CVK is offered as a “Seat & Cover – Soft Close” spare. Be Chennai
- The seat is listed under “Seat & Cover – Soft Close” spares in regional TOTO spare parts lists. Be Chennai
- In installation / product descriptions, “TC501CVK” is paired with wall‑hung toilets such as the RENESSE series (e.g. “CW512YR#W / … / TC501CVK”). in.toto.com
- In one product listing, the wall‑hung toilet “CW512YR#W / 9AE0017 / TC501CVK” is marketed, linking the toilet body and seat. in.toto.com
From these, it is likely that TC501‑H5 is either a variant or a regional designation (for example, “H5” could denote a hinge style, color code, or revision) of the TC501 series seat / cover (soft close, quick release, stainless steel hinges) used with TOTO’s wall-hung toilets.
Likely functional / spare parts of TC501‑H5 (based on TC501 series)
Given what is standard for soft-close toilet seats of this type, these are the functional / spare parts you would expect:
ComponentFunction / NotesSoft‑close hinge mechanisms (left & right)Internal dampers / hydraulic / friction elements that slow down the seat / lid as they close.Stainless steel hinge arms / pivot rodsStructural parts connecting seat / cover to bowl and supporting motion.Quick‑release latch / release buttonsMechanism to detach the seat / cover easily from the toilet for cleaning.Mounting hardware: bolts, nuts, brackets, screwsThat secure the hinge assemblies to the toilet bowl or mounting plate.Hinge covers / capsAesthetics and protection, covering the hinge internals and fasteners.Seals or washers (if any, at pivot points)To reduce play / wear and absorb slight misalignments.The seat and lid (urea resin) themselvesThe shell parts which hinge upon the hardware above.
Because TC501 is already marketed as a soft‑close, quick-release, removable seat with stainless steel hinges, the major spares are likely to be hinge / damper assemblies and any connectors / fasteners.
How to get exact / official parts & drawings for TC501‑H5
To find the precise part numbers, internal details (damping specifications, materials, tolerances), you should:
- Check the seat / hinges physically
- Open hinge covers, look inside for model or batch markings on the hinge / damper bodies.
- Note dimensions: hinge spacing, pivot rod diameters, hinge arm lengths, seat once detached.
- Request the parts / service catalog from TOTO (your region)
- TOTO dealers or service centers often have exploded views / parts breakdowns.
- Provide “TC501‑H5” and explain it appears linked to “TC501 / TC501CVK” so they can check for variant parts.
- Search for “TC501CVK parts” documentation
- Since TC501CVK is better documented, there may be drawings or parts list for it which largely applies to H5 variant.
- For example, the “TC501CVK_2D” and “Factsheet” are available via TOTO Europe. TOTO
- Consult local TOTO spare parts vendors
- They sometimes carry hinge / damper kits for that seat model.
- Show them your seat, hinge, or the code “TC501‑H5 / CVK” to match spares.
- Use regional TOTO spare parts listings
- For example, in TOTO Chennai spares listings, “TC501CVK Seat & Cover – Soft Close” is listed as a spare. Be Chennai
- Ask whether the “H5” suffix has any difference (e.g. hinge type or color).
If you want, I can try to find a technical drawing (exploded view) for TC501‑H5 (or TC501CVK) in TOTO’s
