Toto spares, Toto parts, Toto spare parts, Spare code no : WH171-T5 - Driving Bracket Flush arm.ere’...

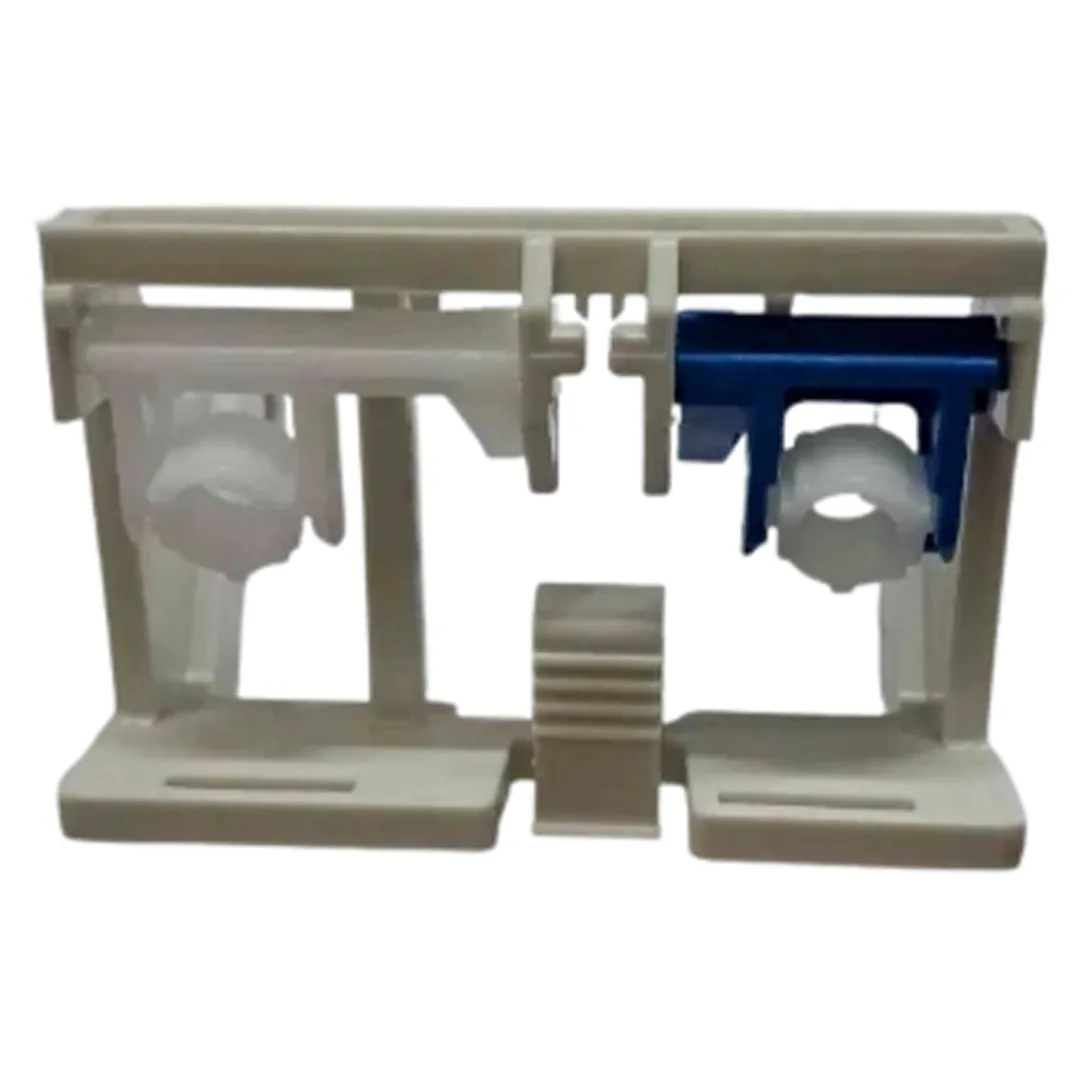

Toto spares, Toto parts, Toto spare parts, Spare code no : WH171-T5 - Driving Bracket Flush arm.

ere’s what is known (or can be reasonably inferred), plus suggestions for how to get the precise details you’ll need:

🔍 What is known (based on TOTO naming & related parts)

• TOTO has a concealed cistern / flush tank model WH171A documented in TOTO’s product line. TOTO
•

• The “WH17x” series seems to designate a family of concealed flush tanks / frames for wall-hung / in-wall toilet systems in TOTO’s catalog.
•

• The internal mechanical parts, such as the flush arm or “driving bracket,” are typically part of the flush mechanism inside the cistern or frame, connecting the actuating (push‑plate / flush button) system to the flush valve / flapper.

Thus, “WH171‑T5” sounds like it might be a sub‑part or variation (perhaps for a specific variant or regional model) of the flush/bracket assembly used inside or complementary to the WH171A (or a related WH17-series) concealed cistern.

However, no direct match for “WH171‑T5” turns up in TOTO’s published product catalogs or parts lists (as of the latest searches).

🧩 What details you’ll likely need / want

To fully specify the “driving bracket / flush arm” you’ll want or need:

ParameterDescription / What to measure / askDimensionsLength, width, thickness, mounting holes spacing, pin diameters, pivot geometryMaterial / finishWhat metal or alloy (stainless steel, plated steel, etc.) or plasticMounting points / shapeWhere it attaches to the flush mechanism, lever / push rods, flapper, etc.Compatibility / model fitWhich TOTO cistern / frame models it fits (WH171A, WH172, etc.)Operation typeDual flush or single flush, whether this bracket is for auto flush variant etc.Load / stress / toleranceWhat torque / force it must handle to operate reliably

🛠 How to get the precise spec / details

Since the public sources didn’t show the part, here are steps you can take:

1. Contact TOTO service / parts department
2. Give them exactly the cistern or frame model (e.g. “WH171A” or the full bathroom setup) and your part name “WH171‑T5 driving bracket”. They may have internal parts drawings or exploded diagrams.
3. Get an exploded internal parts diagram / spare parts list
4. Many brands publish internal “spare parts breakdown” (exploded view) documents for each tank or frame. That typically shows the flush lever / bracket / rods with their part numbers.
5. Inspect the existing part / take measurements
6. If you still have the broken or existing bracket, disassemble carefully and measure all its dimensions (holes, pivots, length) and sketch it. That helps in ordering or fabricating a replacement.
7. Check local TOTO spares / plumbing wholesalers
8. In cities like Chennai (or major plumbing parts hubs), specialized TOTO spare dealers might carry or be able to order “WH17 series internal flush parts.” Show them the bracket or part number.
9. Search internal part number cross references
10. Sometimes the internal bracket has a different sub‑part number (e.g. T5 variant) that is not broadly advertised, but may appear in service catalogs or internal TOTO documentation.
11. Use photos / comparison
12. If you can get photos (front, side, back) of your bracket and the cistern internals, I can help you identify compatible parts or make a drawing for you.
