Toto Spares, Toto Parts, Toto Spare Parts, Spare Code No : TTLE101A,

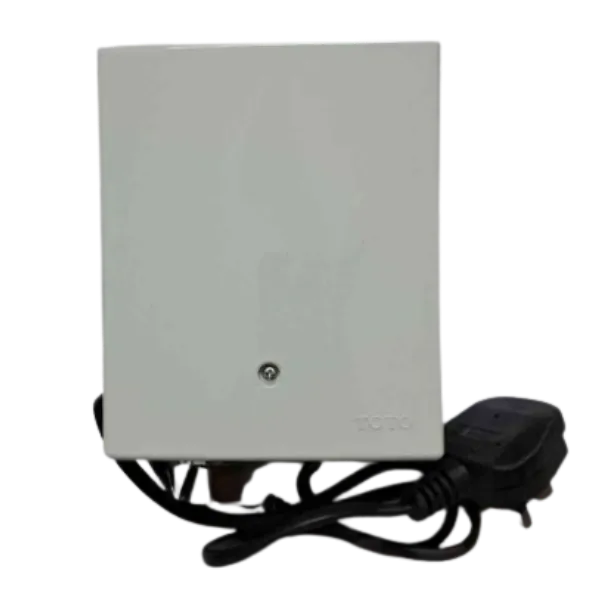

TOTO TTLE101A is not a faucet spout itself; it is the electronic controller/sensor unit used with TOTO automatic (touchless) lavabo faucets in the TTLA101/TTLA102 series. It provides the power and control functions for the infrared sensor faucet.
Part Details
- Part Number: TTLE101A
- Type: Automatic faucet controller / sensor control unit
- Power Supply: AC 100–240V (220V operation in many Asian installations)
- Water Type: Cold water configuration
- Application: TOTO touchless lavabo faucets
- Compatible Faucet Series: TTLA101, TTLA102 and related automatic faucet models.
Function
The TTLE101A unit:
- Receives signals from the infrared sensor.
- Controls the solenoid valve to start/stop water flow.
- Manages automatic operation and water-saving functions.
- Supplies power and logic control for the touchless faucet system.
Typical System Components
A complete TTLA101/TTLE101A faucet installation generally includes:
- TTLA101 faucet spout
- Sensor assembly
- TTLE101A controller
- Solenoid valve
- Stop valve
- Power connection plug and wiring harness.
Typical Specifications
- Flow rate: approximately 2.5 L/min
- Water pressure: 0.05–0.75 MPa
- Finish (associated faucet): Nickel Chrome
- Mounting: Deck-mounted automatic faucet system.
Common Reasons for Replacement
- Sensor does not detect hands.
- Water does not start or stop automatically.
- Controller failure due to electrical surge or water ingress.
- Solenoid valve output not operating correctly despite sensor function.
If you need a spare-parts breakdown, wiring diagram, or component-level details for TTLE101A, I can help identify the individual replaceable parts (sensor set, controller PCB, solenoid valve, cables, etc.) from the TOTO service documentation.
