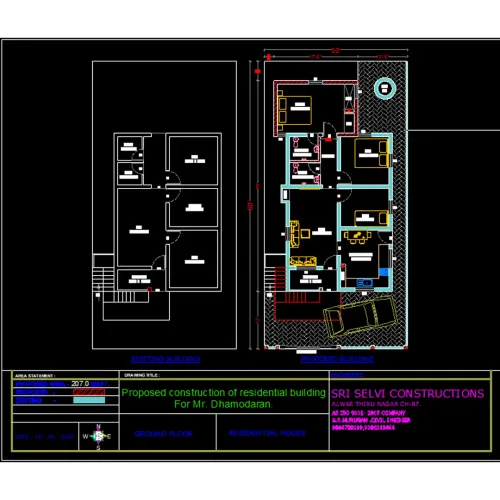

Existing and proposed building :
Existing Building Drawing (As-Built Plan)
✅ Details Included:
- Current layout: Walls, rooms, doors, and windows as they physically exist.
- Structural details: Columns, beams, slab thicknesses.
- Electrical and plumbing fixtures in their current state.
- Floor levels and ceiling heights.
- Material specifications (e.g., brick wall, concrete, etc.).
- Deterioration or damage (if relevant in restoration projects).
- Site plan showing boundaries and surrounding features.
📌 Uses:
- Baseline for renovation or expansion projects.
- Required for building approvals if you're altering a structure.
- Helps assess structural integrity or compliance with codes.
- Essential for retrofitting, restoration, or demolition planning.

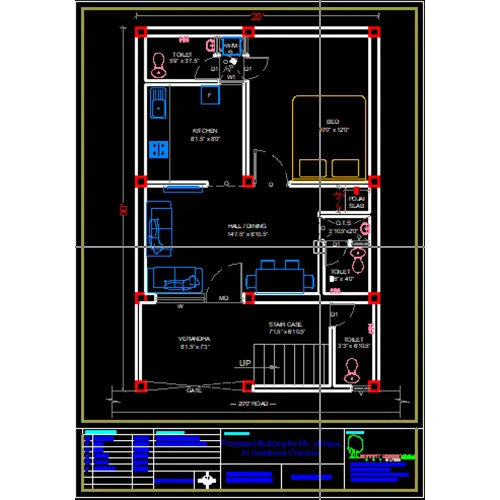

🔹 2. Proposed Building Drawing
✅ Details Included:
- New layout after changes (rooms, partitions, additions, etc.).
- Any additions: extra floors, new wings, extensions, etc.
- Modified electrical, plumbing, and HVAC systems.
- Landscaping or external changes like compound walls, ramps.
- Compliance with codes: fire exits, accessibility, lighting, ventilation.
- Clearly marked demolition and new construction areas (in renovation projects).
📌 Uses:
- Submitted for building permits or zon…
