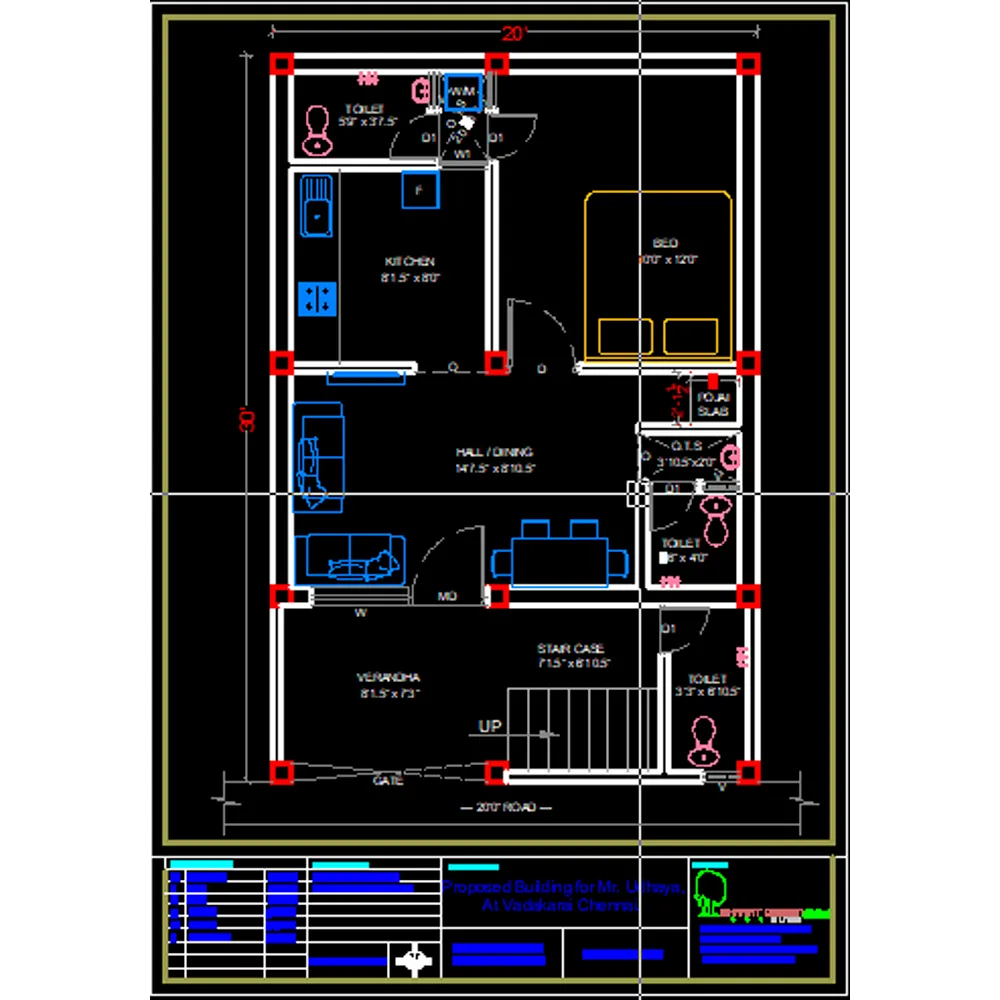

A ground floor scheme drawing (also called a ground floor plan) is a scaled architectural drawing that shows the layout of the ground floor of a building as if viewed from above. It's one of the most essential components of any building design and construction project.

🔹 Details Typically Included in a Ground Floor Scheme Drawing:

1. Layout of Walls and Rooms:

• Room shapes, sizes, and labels (e.g., living room, kitchen, toilet, etc.).
•

• Internal and external walls with thicknesses marked.

1. Doors and Windows:

• Types, sizes, and positions of doors and windows.
•

• Swing direction of doors.

1. Staircases:

• Direction of ascent/descent.
•

• Step details (tread, riser dimensions).

1. Furniture Placement (optional):

• For visualization or space planning.

1. Floor Finishes:

• Types of flooring (tiles, wood, carpet).

1. Levels and Dimensions:

• Room dimensions (length and width).
•

• Wall thickness, setbacks, and distances between key elements.

1. Openings and Ventilation:

• Ventilators, ducts, and natural light provisions.

1. Symbols and Legends:

• Explanation of symbols used (e.g., for electrical points, windows, plumbing fixtures).

🔹 Uses of a Ground Floor Scheme Drawing:

1. Design & Planning:

• Helps architects, clients, and engineers visualize and plan the layout.

1. Construction Guidance:

• Used by builders to understand dimensions, materials, and structure placement.

1. Approval & Permits:

• Submitted to local authorities for building approval.

1. Interior Design:

• A reference for placing furniture, lighting, and decor.

1. Real Estate Marketing:

• Shown to potential buyers for understanding the property layout.
