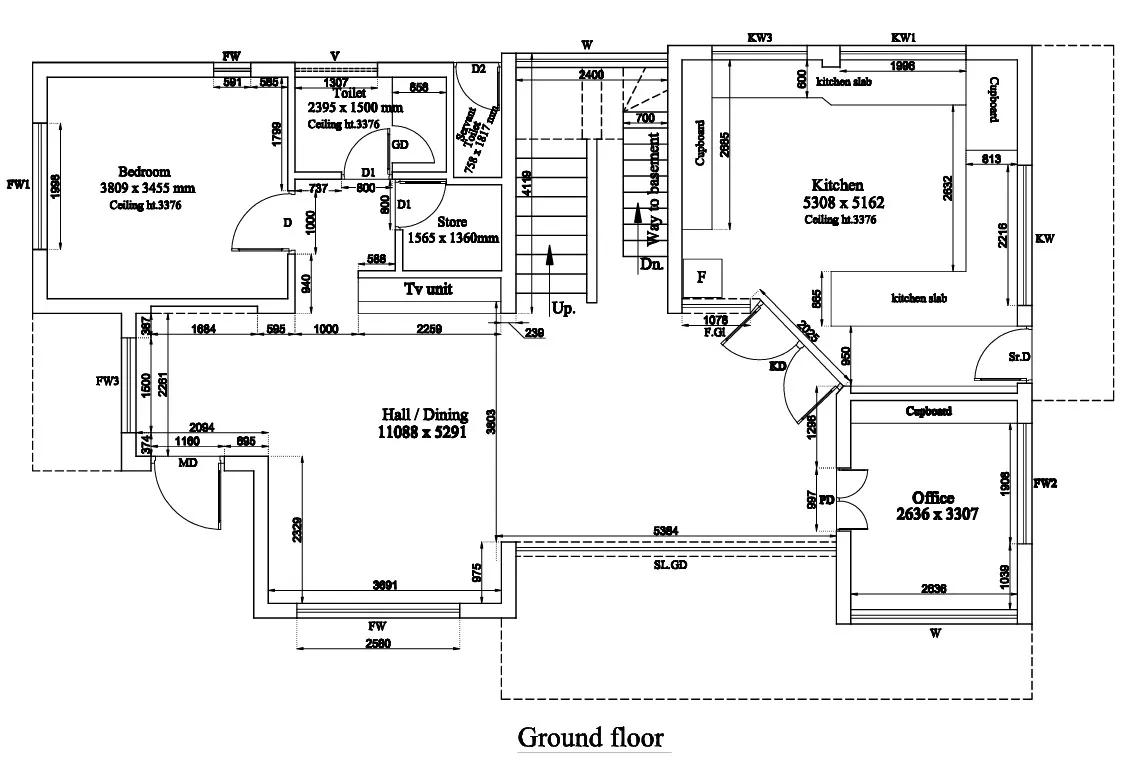

📐 As-Built Drawing – Ground Floor Plan (Details & Format Guide)

An As-Built Ground Floor Plan shows the actual constructed condition of the ground floor after project completion. It includes all on-site changes made during construction compared to the original approved drawings.

1️⃣ Title Block Information

Include the following:

• Project Name
•

• Site Address
•

• Client Name
•

• Drawing Title: “As-Built – Ground Floor Plan”
•

• Drawing Number
•

• Scale (1:100 / 1:50 typical)
•

• Date
•

• Revision Number
•

• Prepared by / Checked by

2️⃣ Architectural Layout Details

🧱 A. Room Layout (Actual Measured Dimensions)

• Living Room size
•

• Bedrooms size
•

• Kitchen size
•

• Toilets size
•

• Store room
•

• Dining area
•

• Lobby
•

• Staircase area
•

• Porch / Car parking

👉 All dimensions should reflect actual site measurements, not design drawings.

🚪 B. Doors & Windows Schedule

• Door numbers (D1, D2, etc.)
•

• Actual door sizes (e.g., 900x2100 mm)
•

• Window numbers (W1, W2, etc.)
•

• Ventilators
•

• Opening direction

📏 C. Levels

• Finished Floor Level (FFL)
•

• Plinth Level
•

• Road Level
•

• Step details at entrance
•

• Ramp slope (if any)

3️⃣ Structural Details (As Constructed)

• Column locations & sizes
•

• Beam sizes and layout
•

• Slab thickness
•

• Footing reference (if shown)
•

• Any deviation from structural drawing

4️⃣ Electrical As-Built Layout

Show actual installed:

• Light points
•

• Fan points
•

• Switchboards
•

• 5A / 15A sockets
•

• AC points
•

• TV/Data points
•

• Distribution Board (DB)
•

• Earthing pit location (if required)

5️⃣ Plumbing As-Built Layout

Include:

• Water supply pipe routing
•

• Drainage line routing
•

• Inspection chambers
•

• Septic tank / sewer connection
•

• Floor traps
•

• Gully traps
•

• Rainwater pipe

6️⃣ Flooring & Finishing Details

• Floor finish type (Tiles / Granite / Marble)
•

• Skirting height
•

• Wall finish
•

• Toilet dado height
•

• False ceiling height (if provided)

7️⃣ External Ground Floor Details

• Setbacks (actual measured)
•

• Compound wall location
•

• Gate width
•

• Landscape area
•

• Driveway width
•

• Storm water drainage

8️⃣ Revisions & Changes Marking

In as-built drawings:

• Changes are clouded or highlighted
•

• Note deviations like:
• Shifted wall position
•

• Changed toilet layout
•

• Added window
•

• Increased room size
•
