As Built Drawing Second Floor : AS-BUILT DRAWING

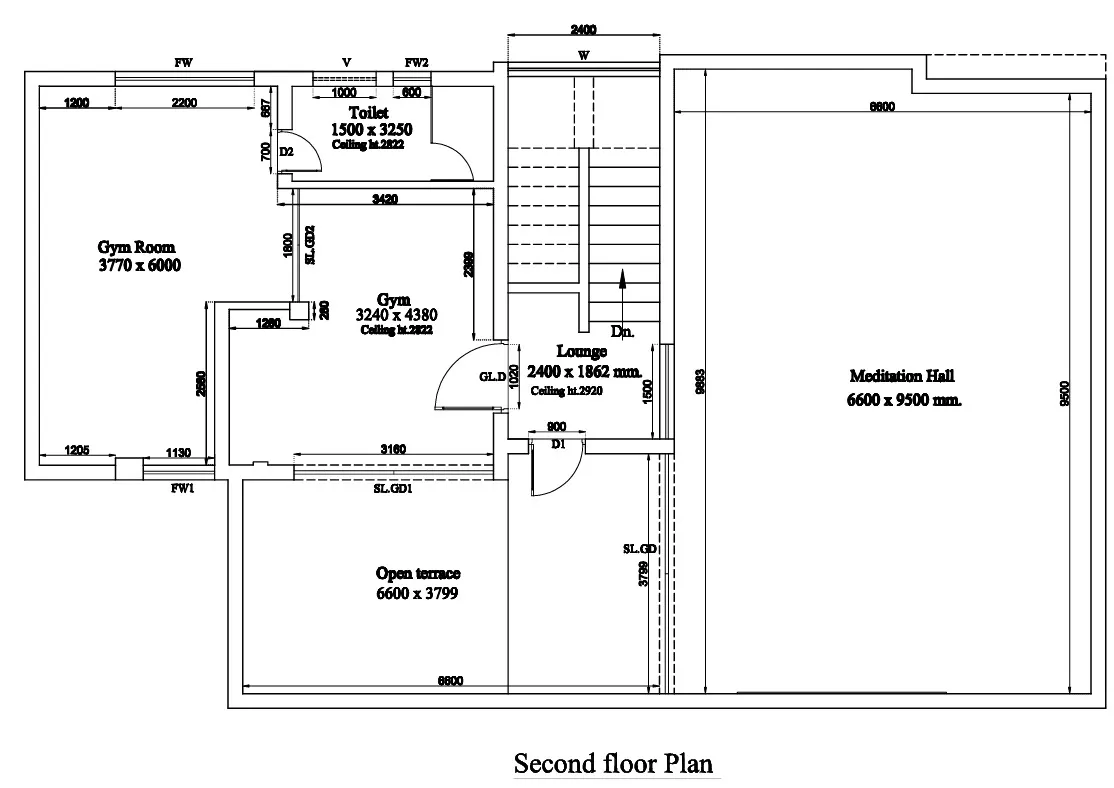

SECOND FLOOR PLAN

1️⃣ Title Block Information

Include:

• Project Name
•

• Client Name
•

• Location
•

• Drawing Title: “As-Built Second Floor Plan”
•

• Drawing Number
•

• Scale (1:100 / 1:75 / 1:50)
•

• Date
•

• Prepared by / Checked by
•

• Revision History

2️⃣ Architectural Details (Main Floor Plan)

🧱 Walls & Structure

• Column positions and sizes
•

• Structural walls / shear walls
•

• Partition walls (actual thickness)
•

• Beam positions (if visible / bulkhead)
•

• Slab thickness (if noted)

🚪 Doors & Windows

• Door numbers & sizes
•

• Window numbers & sizes
•

• Ventilators
•

• Opening direction
•

• Any change from original plan marked clearly

🏠 Room Information

• Room names (Bedroom, Office, Toilet, Lobby, etc.)
•

• Clear internal dimensions
•

• Built-up area
•

• Carpet area (if required)
•

• Balcony sizes

3️⃣ Levels & Heights

• Finished Floor Level (FFL)
•

• Slab Level (SSL)
•

• Ceiling height
•

• False ceiling level (if any)
•

• Toilet sunken slab depth

Example:

• FFL: +6.000 m
•

• Ceiling Height: 2.75 m

4️⃣ MEP Services (Very Important in As-Built)

🚰 Plumbing

• Toilet layout
•

• Floor traps
•

• Pipe routing
•

• Shaft locations
•

• Cleanouts

⚡ Electrical

• DB (Distribution Board) location
•

• Light points
•

• Switchboard positions
•

• AC points
•

• Data / TV points

❄ HVAC (If Applicable)

• Indoor AC unit location
•

• Duct routing
•

• Diffusers
•

• Drain pipe routing

🔥 Fire Fighting (Commercial Projects)

• Sprinklers
•

• Smoke detectors
•

• Fire alarm
•

• Emergency lighting

5️⃣ Dimensions to Include

• Overall building dimensions
•

• Grid line references
•

• Room-to-room measurements
•

• Wall thickness
•

• Balcony projections
•

• Staircase width & landing size

6️⃣ Notes Section (Important for Submission)

Include standard notes such as:

• “All dimensions are site verified.”
•

• “Drawing represents actual site condition.”
•

• “Any discrepancy to be reported before execution.”
•

• “Do not scale drawing.”

📊 What Authorities Usually Check

✔ Built-up area vs approved drawing

✔ Balcony projection

✔ Toilet & shaft position

✔ Staircase width

✔ Setback compliance

✔ Structural column position
