Building plan staircase block details :

STAIRCASE BLOCK DETAILS IN A BUILDING PLAN

A staircase block (staircase shaft or stair core) consists of the plan, sections, elevations, and construction details that describe how the stairs are built.

1. ESSENTIAL COMPONENTS IN A STAIRCASE PLAN

A. Stair Flight

• Series of steps connecting two levels
• Shown with rise direction arrow (↑ UP or ↓ DOWN)
• Risers and treads marked clearly

B. Landing

• Intermediate platform between two flights
• Can be mid-landing or floor landing
• Typically same width as stair
• Thickness and material noted

C. Staircase Opening / Stair Well

• Void area required for headroom
• Must show clear size (e.g., 2.5m × 4.0m)
• Coordinate with beams and slabs

D. Staircase Walls

• Shaft walls (brick/RCC)
• Handrail/guardwall (900–1050 mm height)
• Thickness indicated

E. Structural Elements

• Waist slab or folded slab
• Beam under landing (if any)
• Landing slab thickness
• Reinforcement directions (in structural drawings)

2. DIMENSIONAL DETAILS (ARCHITECTURE STANDARD)

A. Standard Dimensions

• Tread: 250–300 mm
• Riser: 140–170 mm
• Width of stair:
• Residential: 900–1100 mm
• Commercial: 1500–2000 mm
• Public buildings: 2000+ mm

B. Number of Steps

• Ideal riser count per flight: 10–14 steps
• Check total floor height:
• e.g., Floor height = 3000 mm → 17 risers of ~165 mm

C. Headroom Clearance

• Minimum 2.1 m above each step

D. Landing Dimensions

• Width = stair width
• Length = minimum 1.0–1.2 m (residential), 1.5 m+ (commercial)

3. DRAWING DETAILS SHOWN IN PLAN VIEW

      |←—— Stair Width ——→|
 ┌─────────────────────────────┐
 |   │■■■■■■■■■■■■■■ Step 1    |
 |   │■■■■■■■■■■■■■■ Step 2 → UP
 |   │■■■■■■■■■■■■■■ Step 3    |
 |   │         …               |
 |   └─────── Landing ─────────┐
 |                    ↑         |
 |                 Next Flight  |
 └──────────────────────────────┘

Plan view includes:

• Direction arrow ('UP →')
• Step numbering (R1, R2 …)
• Tread depth written (e.g., T = 270 mm)
• Riser height written (e.g., R = 165 mm)
• Landing size
• Handrail location
• Staircase well opening
• Dimensions and offsets from walls

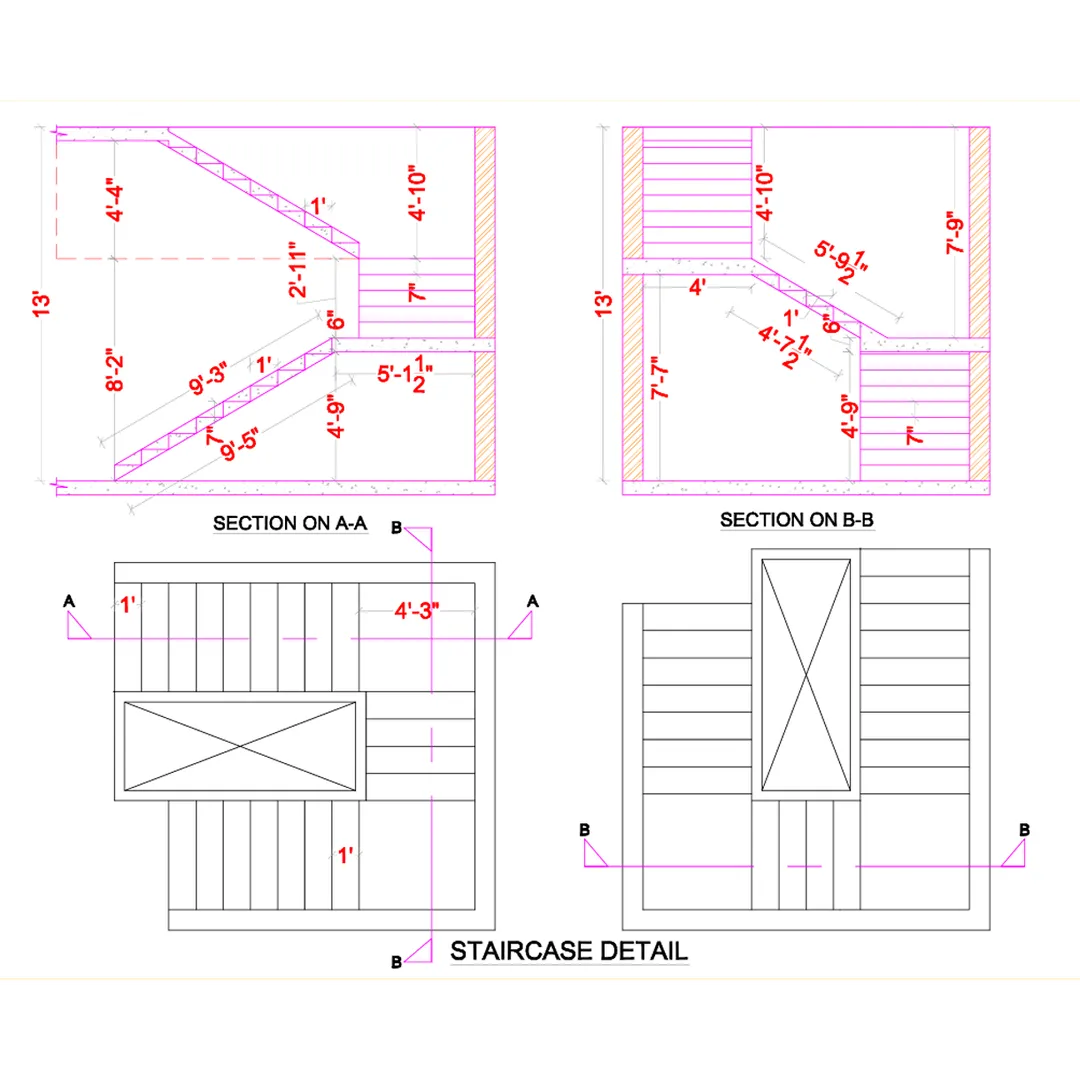

4. SECTIONAL DETAILS OF STAIRCASE

A staircase must include at least one longitudinal and one cross section.

Longitudinal Section (A–A)

Shows:

• Rise & tread profile
• Floor-to-floor height
• Waist slab thickness (120–150 mm typical)
• Landing slab & support beam
• Headroom measurement
• Handrail & baluster details

Example:

        Handrail
          /
 Step ————│ 900 mm

  ____________________________________________________
 |   |¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯|    FFL 0.00
 | R |____  ____  ____  ____  ____  |
 | i |    ||    ||    ||    ||    | |
 | s |    ||    ||    ||    ||    | |
 | e |____||____||____||____||____| |
 | r |<---- 270 mm tread ----->|    |
 |___|     150 mm Riser             ↑  Headroom ≥ 2.1 m
 ------------------------------------  Slab Below

5. STRUCTURAL STAIR DETAILS

A. Waist Slab

• Inclined slab supporting the steps
• Typical thickness: 120–150 mm
• Reinforcement: bottom steel main bars (parallel to flight)

B. Landing Slab

• Thickness 120–150 mm
• Supported by beams or walls
• Reinforcement indicated separately

C. Beams in Staircase Block

• Edge beams around the staircase opening
• Landing beams supporting mid landing

6. MATERIAL AND SAFETY DETAILS

Handrail / Guard Rail

• Height: 900–1050 mm
• Material: RCC / MS / SS / Glass as required
• Baluster spacing: ≤ 110 mm gap (child safety)

Non-Slip Finishes

• Anti-skid tiles
• Concrete steps with nosing groove

7. STAIRCASE TYPES (for drawing classification)

• Dog-legged staircase (most common in residential buildings)
• Open-well staircase (larger, with central well)
• Straight flight staircase
• U-turn staircase
• Spiral staircase
• Cantilever staircase
• External fire escape staircase

Tell me your staircase type, and I will give the exact plan and section details.

8. SAMPLE TEXT-BASED STAIRCASE BLOCK PLAN (DOG-LEGGED)

              UP
        ┌────────────┐
        │ Step 1-10  │  Flight 1
        │            │
        └──────┬─────┘
               │ Landing (1200 mm)
               │
        ┌──────┴─────┐
        │ Step 11-20 │  Flight 2
        │            │
        └────────────┘  → to next floor

✔ If you want, I can create:

→ A detailed plan, section, and elevation for your staircase

→ A staircase drawing with dimensions, reinforcement, and notes

→ A CAD-style text layout

→ A staircase design based on your building’s floor height

Just tell me:

• Staircase type
• Floor height (e.g., 3000 mm)
• Required stair width
• Building type (house, apartment, office)

I’ll generate the exact staircase block drawing you need.
