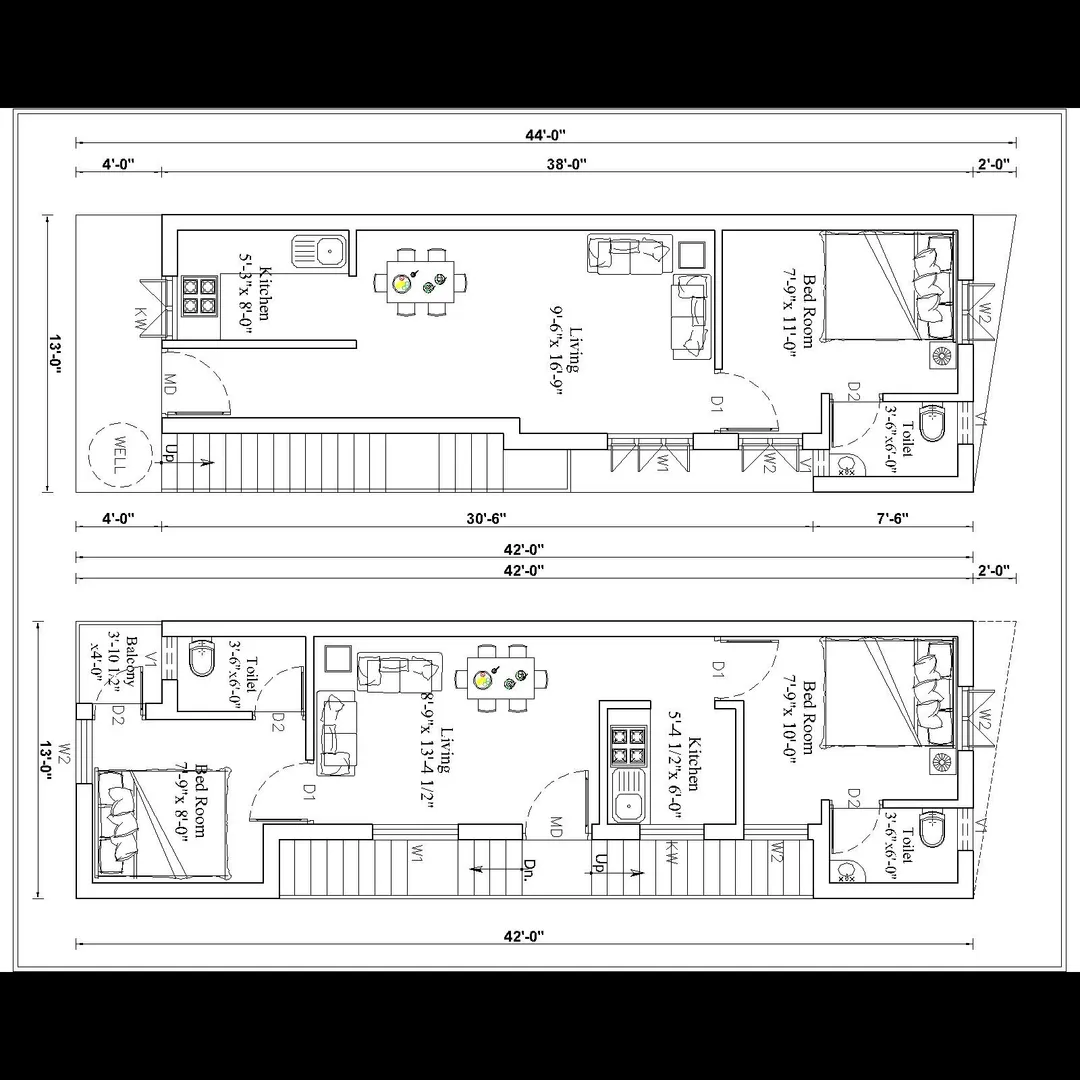

Coarse Plot with Schematic Drawing :
A Coarse Plot Drawing (also called a Preliminary or Concept Plot Layout) is the very first draft of how your land (plot) will be developed — before making detailed architectural or structural plans.
It’s called “coarse” because it shows only the major components — not exact wall thicknesses or finishes.
It combines:
- The plot layout (land area with boundaries, road, setbacks)
- A basic schematic drawing (building position, orientation, and room zones)
🎯 2. Purpose of a Coarse Plot + Schematic Drawing
Objective Description Site Utilization Shows how much of the plot will be used for building vs. open space. Orientation & Vastu Alignment Helps ensure the structure faces the correct direction (East/North).Approval Readiness Early draft for discussions before formal submission to the local authority (e.g., Chennai Corporation / CMDA).Design Planning Decides the best location for rooms, parking, and service areas before final design. Client & Architect Coordination Quick visual to discuss requirements.
📋 3. Key Details Included in a Coarse Plot + Schematic Drawing
A. Plot-Level Details
Item Description Plot size and area e.g 30'×40' = 1200 sq.ft Boundary dimensions Exact edges of site North direction arrow Always included for orientation Abutting Road name and width Setbacks Front, rear, and side open spaces per local norms Plot coverage %Approximate built-up vs. open area F.A.R. / F.S.I Optional for early planning
B. Building (Schematic) Details
Element Description Building footprint Approximate shape and position of the proposed structure Room zones (not exact walls)Living, bedroom, kitchen, toilet, etc. Entry gate and parking Indicated with simple blocks Water, septic, and service areas Approximate placement Vastu zones North - East (Puja, living), South-East (Kitchen), South-West (Master Bedroom), etc. Staircase location Shown for circulation Green / open areas Front garden, rear utility, etc.
