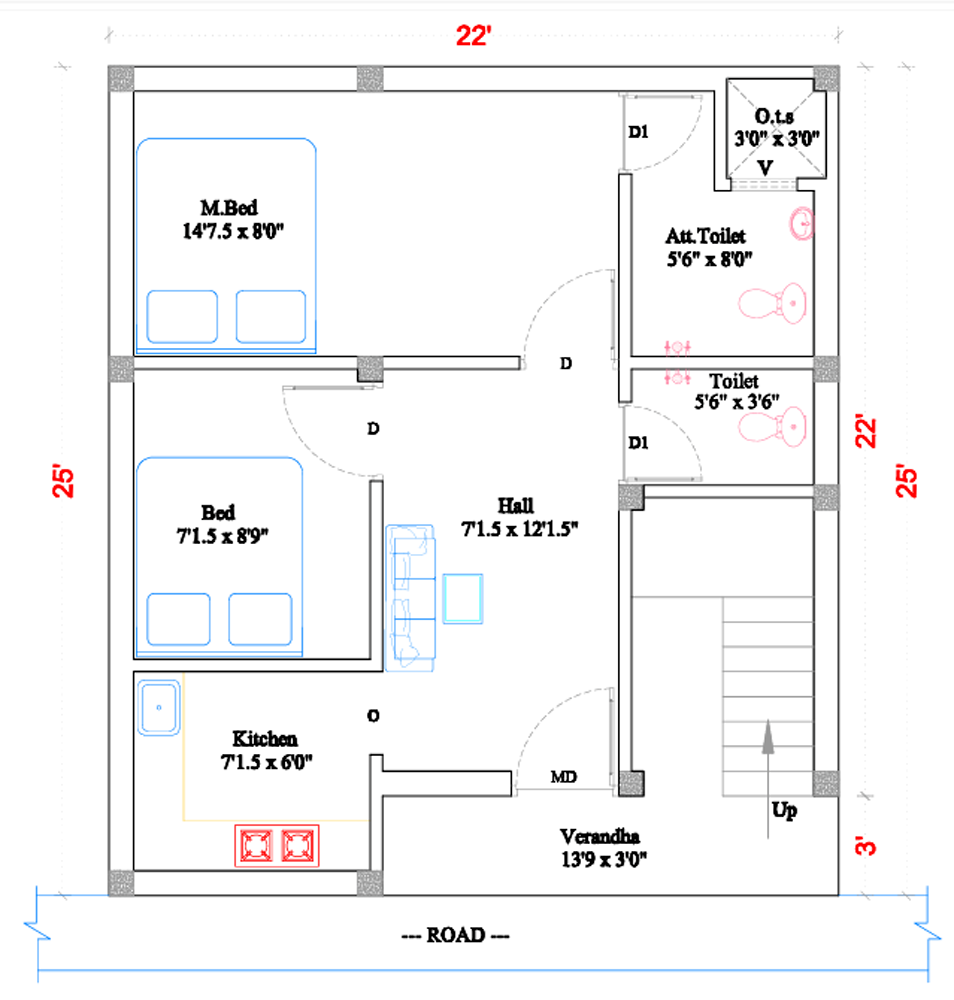

Ground floor Plan : 🏗️ What a Building Plan Needs

📐 1. Architectural Drawings

These define how your building will look and function:

• Site plan – plot boundaries, road access, setbacks
• Floor plans – room layout, dimensions, doors/windows
• Elevation drawings – front, side, rear views
• Section drawings – internal structural view (cut section)

🧱 2. Structural Design

Prepared by a structural engineer:

• Foundation details
• Column & beam layout
• Slab design
• Load calculations (important for safety)

🔌 3. Service Plans

Basic utilities must be planned:

• Electrical layout (wiring, switch points)
• Plumbing plan (water supply & drainage)
• Sewerage / septic system
• Rainwater drainage

📏 4. Plot & Legal Details

• Land ownership documents (Patta in Tamil Nadu)
• Survey sketch / FMB (Field Measurement Book)
• Plot size and road width
• Zoning compliance

🏛️ 5. Approval Requirements (India / Tamil Nadu)

You need approval from local authority such as:

• Chennai Metropolitan Development Authority
• Local Municipal Corporation / Panchayat

Common requirements:

• Setback rules
• Floor Space Index (FSI) limits
• Building height restrictions
• Parking requirements

📄 6. Documents to Submit

• Application form
• Architect’s signed drawings
• Structural stability certificate
• Ownership proof
• Tax receipts

💰 7. Cost Estimate (Optional but useful)

• Material estimate
• Labour cost
• Total project budget

✔️ Why These Are Needed

• ✅ Legal approval (avoid penalties/demolition)
• ✅ Safe construction
• ✅ Proper utility planning
• ✅ Easier loan approval from banks

⚠️ Important Tips

• Always hire a licensed architect/engineer
• Follow local building rules (CMDA / DTCP)
• Don’t start construction without approval.
