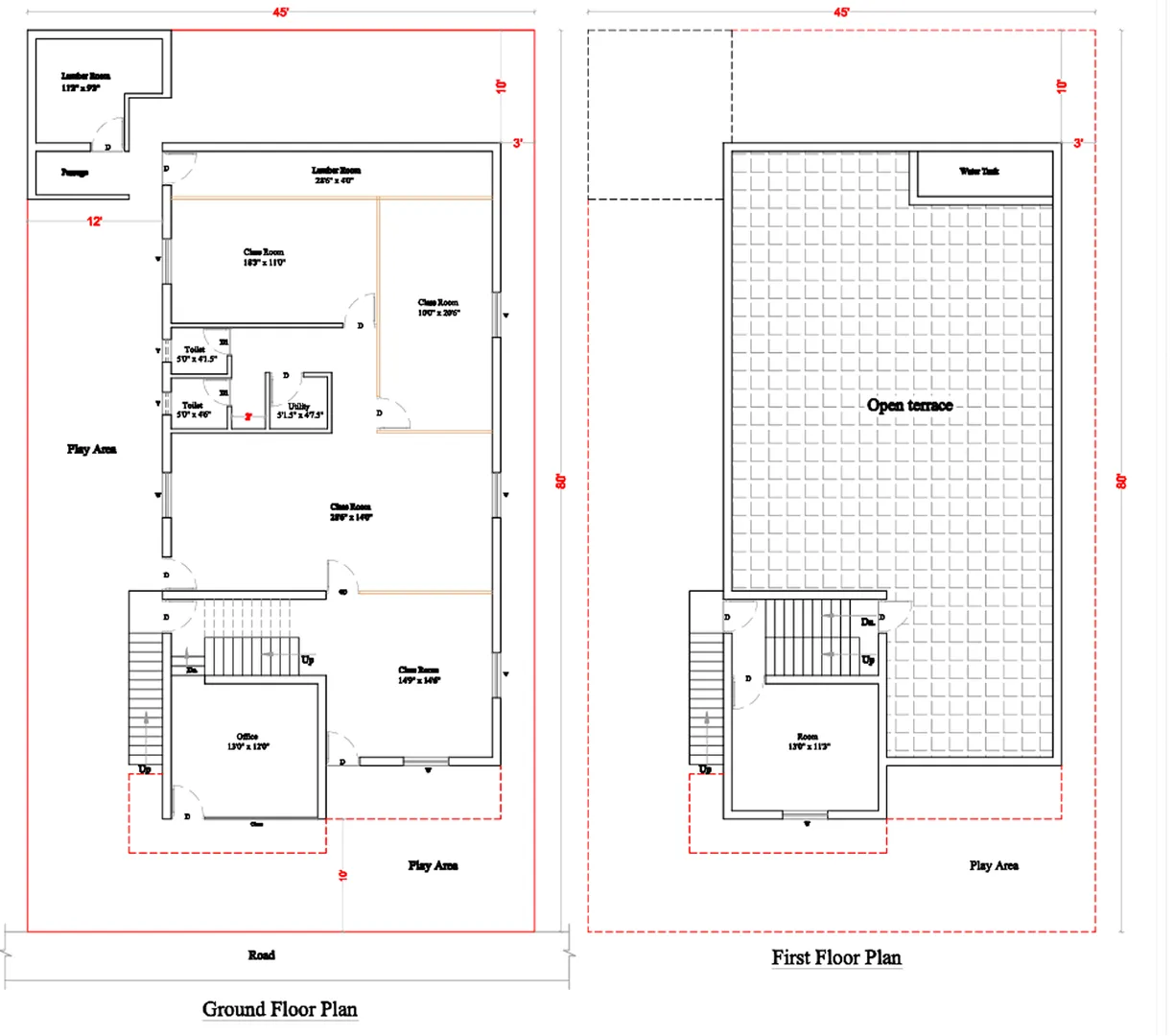

Institute building plan : Below is a clear, practical guide for INSTITUTE / EDUCATIONAL BUILDING plan requirements, suitable for training institutes, colleges, coaching centers, skill-development centers, and academic campuses. This is written in a planning + approval friendly format.
🏫 INSTITUTE BUILDING PLAN REQUIREMENTS
🔹 Applicable For
- Training institutes / coaching centers
- Colleges & universities
- Skill development centers
- Research & learning facilities
1️⃣ Site & Planning Requirements
- Approved institutional / educational land use
- Minimum road width (as per local authority, usually 9–12 m)
- Plot size as per student capacity
- Setbacks & building height limits
- Fire tender access (minimum 6 m)
- Barrier-free access
- Open space & playground (if required)
2️⃣ Functional Zoning
Institute buildings are divided into academic, administrative, and service zones.
🔹 Academic Areas
- Classrooms
- Lecture halls
- Laboratories / workshops
- Seminar & conference rooms
- Library & reading rooms
- Computer labs
- Examination halls
🔹 Administrative Areas
- Principal / Director office
- Administrative office
- Faculty rooms
- Meeting rooms
- Records & store rooms
🔹 Student Facilities
- Toilets (male/female)
- Drinking water points
- Common rooms
- Cafeteria / canteen
- Medical / first-aid room
3️⃣ Area Standards (Typical)
📐 Classrooms
- Area per student: 1.2–1.5 m²
- Typical classroom: 45–60 m² (30–40 students)
- Minimum width: 6.0 m
- Clear height: 3.0–3.6 m
📐 Lecture / Seminar Hall
- Area per seat: 1.2–1.4 m²
- Tiered seating if capacity >100
📐 Laboratories
- Area per student: 2.5–4.0 m²
- Separate preparation & store rooms
- Safety showers & exhaust (as required)
4️⃣ Circulation Requirements
- Corridor width:
- Main corridor: 2.0–2.4 m
- Secondary corridor: 1.8 m
- Staircase width: 1.5–2.0 m
- Ramps for accessibility
- Passenger lift (mandatory for multi-storey buildings)
5️⃣ Fire & Life Safety
- Fire NOC from Fire Department
- Fire alarm & detection system
- Fire extinguishers on all floors
- Fire-rated staircases
- Emergency lighting & exit signage
- Refuge areas for high-rise buildings
- Fire drills & evacuation plan
6️⃣ Sanitary Requirements
- Separate toilets for male & female students
- Staff toilets (separate)
- Accessible toilet on each floor
- Toilet ratio (typical):
- 1 WC per 40 students (male/female separately)
- Wash basins near toilets & corridors
7️⃣ MEP (Mechanical, Electrical & Plumbing)
- Electrical load planning
- DG backup for essential services
- Adequate lighting & ventilation
- HVAC for labs, libraries, halls
- Water storage & pumping system
- Sewage Treatment Plant (STP)
- Rainwater harvesting
8️⃣ Accessibility (Mandatory)
- Step-free entrance
- Ramps with handrails
- Accessible toilets
- Lifts with Braille & audio
- Tactile flooring (where required)
9️⃣ Outdoor & Support Facilities
- Playground / sports area
- Assembly area
- Parking (staff & visitors)
- Security cabin
- Bicycle parking
- Landscaping
🔟 Sustainability (Recommended)
- Solar panels
- Energy-efficient lighting
- Natural daylight planning
- Low-flow sanitary fixtures
- Waste segregation
📄 Statutory Approvals
- Building plan approval
- Fire NOC
- Health & sanitation approval
- Environmental clearance (if applicable)
- Lift inspection certificate
- Education board / authority approval
📐 Sample Institute Program (Example)
Training Institute – 500 Students
- Plot area: 2,500 m²
- Built-up area: 4,000–5,000 m²
- Floors: G+3
- Classrooms: 12
- Labs: 4
- Auditorium: 1
- Parking: 40–50 vehicles
