Scheme and Column marking drawing: Here’s a clear explanation (civil engineering) of both Scheme drawing and Column marking drawing 👇

🏗️ 1. Scheme Drawing (Column Reference Scheme)

📌 What is “Scheme” in drawing?

A scheme drawing means the reference system used to identify columns and grids in a building.

👉 It is also called:

• Column reference scheme
•

• Grid reference system

🔹 Purpose

• To identify each column uniquely
•

• To make communication easy on site
•

• Used in structural drawings & site execution

🔹 How it is done

• Grid lines are drawn:
• Horizontal → numbers (1, 2, 3…)
•

• Vertical → alphabets (A, B, C…)
• Each column is identified by grid intersection

👉 Example:

• Column at A–1
•

• Column at B–2

📖 Grid system helps locate structural elements precisely in plans

🔹 Example Scheme

      A     B     C
   -----------------
1  |  C1   C2   C3
2  |  C4   C5   C6
3  |  C7   C8   C9

👉 Here:

• C1, C2 = Column numbers
•

• A1, B2 = Grid references

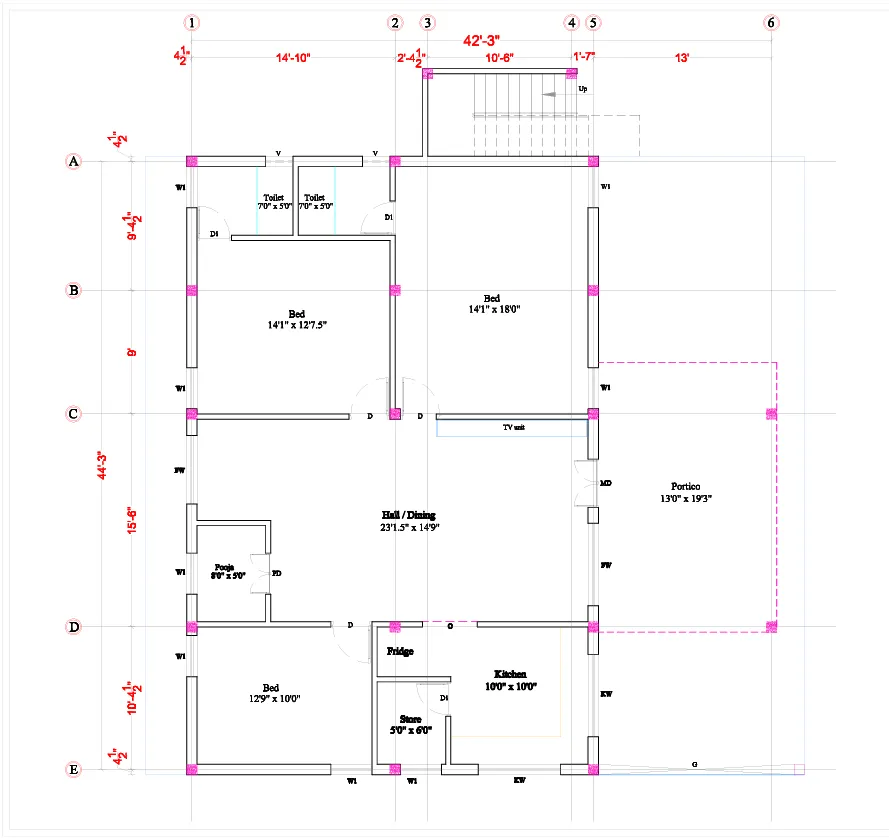

🧱 2. Column Marking Drawing (Column Layout Plan)

📌 Definition

A column marking drawing (or column layout plan) shows:

• Exact position
•

• Size
•

• shape of columns in a building

📖 It is a plan that specifies column size & position and is essential for construction

🔹 Main Components

1. Grid lines
2.

3. Column shapes (square / rectangular / circular)
4.

5. Dimensions (spacing)
6.

7. Column numbering (C1, C2, etc.)
8.

9. Beam connections

📖 It ensures proper load transfer and correct placement of columns

🔹 Purpose

• Used for site marking (setting out)
•

• Guides where to place columns before construction
•

• Ensures alignment with beams & foundation

📖 Setting out is the process of locating column positions on site based on drawings

🔹 Simple Column Marking Sketch

Grid lines:

      A       B       C
   -----------------------
1  |  []      []      []
2  |  []      []      []
3  |  []      []      []

[] = Column position

🔑 Difference (Very Important)

ItemScheme DrawingColumn Marking DrawingMeaningIdentification systemActual layout planShowsGrid reference (A1, B2)Column positions & sizesUseNaming columnsConstructing buildingStagePlanningExecution

✅ Simple Understanding

• Scheme = Naming system (ID of columns)
•

• Column marking = Actual location drawing on plan/site
