Toto spares, Toto parts, Toto spare parts, Spare code no : 1CH501.
TOTO 1CH501 — Details

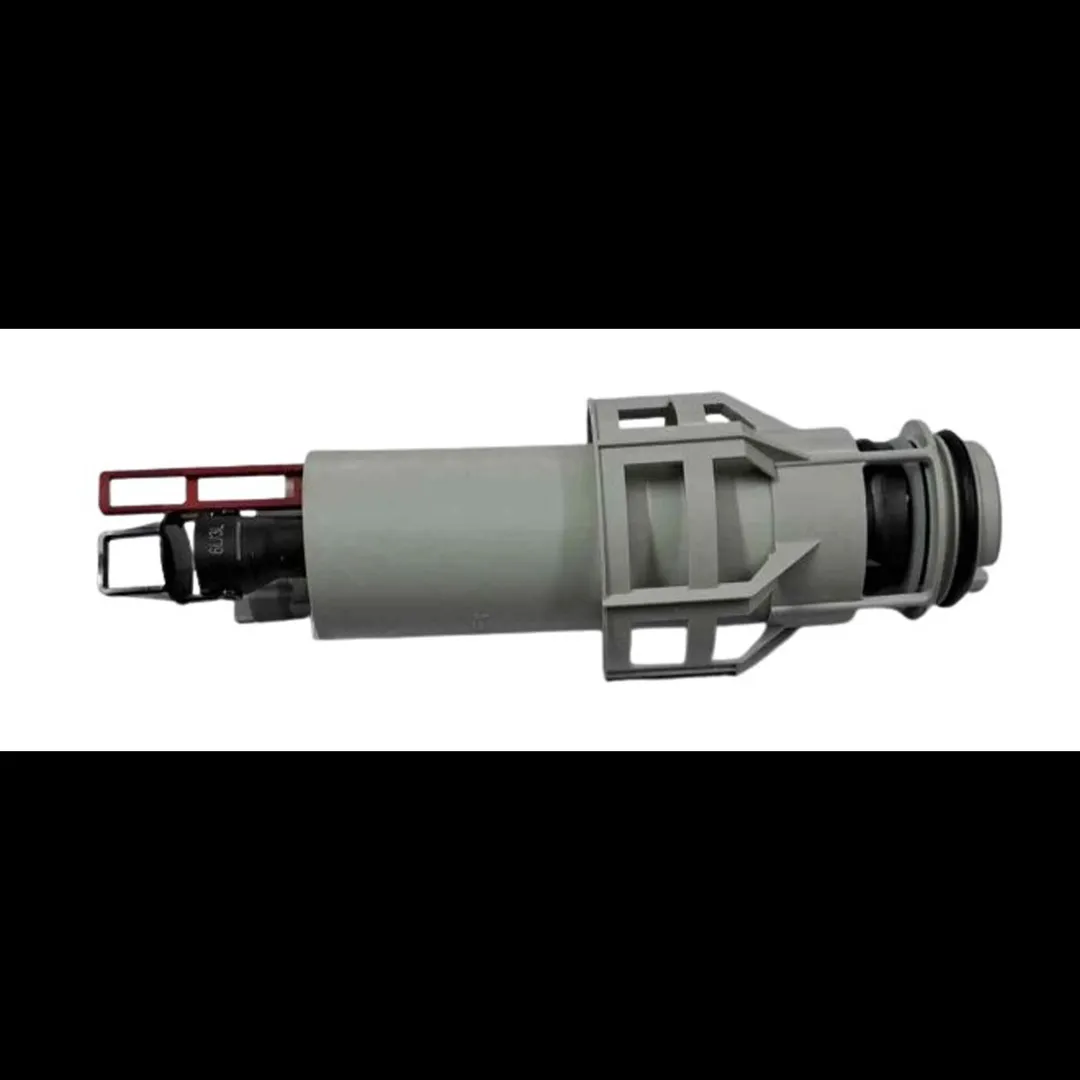

1CH501 is a TOTO toilet flush valve with gasket, used inside the toilet cistern/tank. A current Indian TOTO spare-parts listing identifies it specifically as “Flush Valve With Gasket (6/3)”.
ItemDetailsTOTO spare code1CH501PartFlush valve / outlet valveIncludesGasketFlush volume6 L / 3 L dual flushFunctionReleases water from the cistern into the toilet bowlRelated part1CH500 = 4.8 L / 3 L flush valveKnown applicationWH040D — an import record specifically identifies 1CH501 as the flush valve with gasket for WH040D.
1CH501 vs 1CH500
The important difference is the full-flush volume:
- 1CH501 → 6 L / 3 L
- 1CH500 → 4.8 L / 3 L
So 1CH501 should not automatically be substituted for 1CH500, even though both are flush valves.
If you give me the TOTO toilet/cistern model number (such as WH040D, CW..., CS...), I can identify exactly which 1CH501 version fits and show you the part/photo and dimensions.
TOTO 1CH501 — Uses
1CH501 is a TOTO flush valve with gasket, specifically the 6 L / 3 L dual-flush outlet valve.
Its documented use is:
- Concealed cistern: WH040D
- Function: Releases cistern water into the toilet bowl during flushing.
- Flush capacity: 6 L full flush / 3 L small flush
- Part type: Complete flush/outlet valve with gasket
- It is not the inlet/fill valve; 1BH500 is the inlet valve.
- TOTO documentation confirms WH040D is a 6/3 L concealed cistern, matching the 1CH501 application.
In short:
1CH501 → WH040D concealed cistern → 6/3 L dual flush.
If you're checking a replacement, don't substitute 1CH500 (4.8/3 L) for 1CH501 (6/3 L) without confirming the cistern model.
