Toto Spares, Toto Parts, Toto Spare Parts, Spare Code No : DH818G.

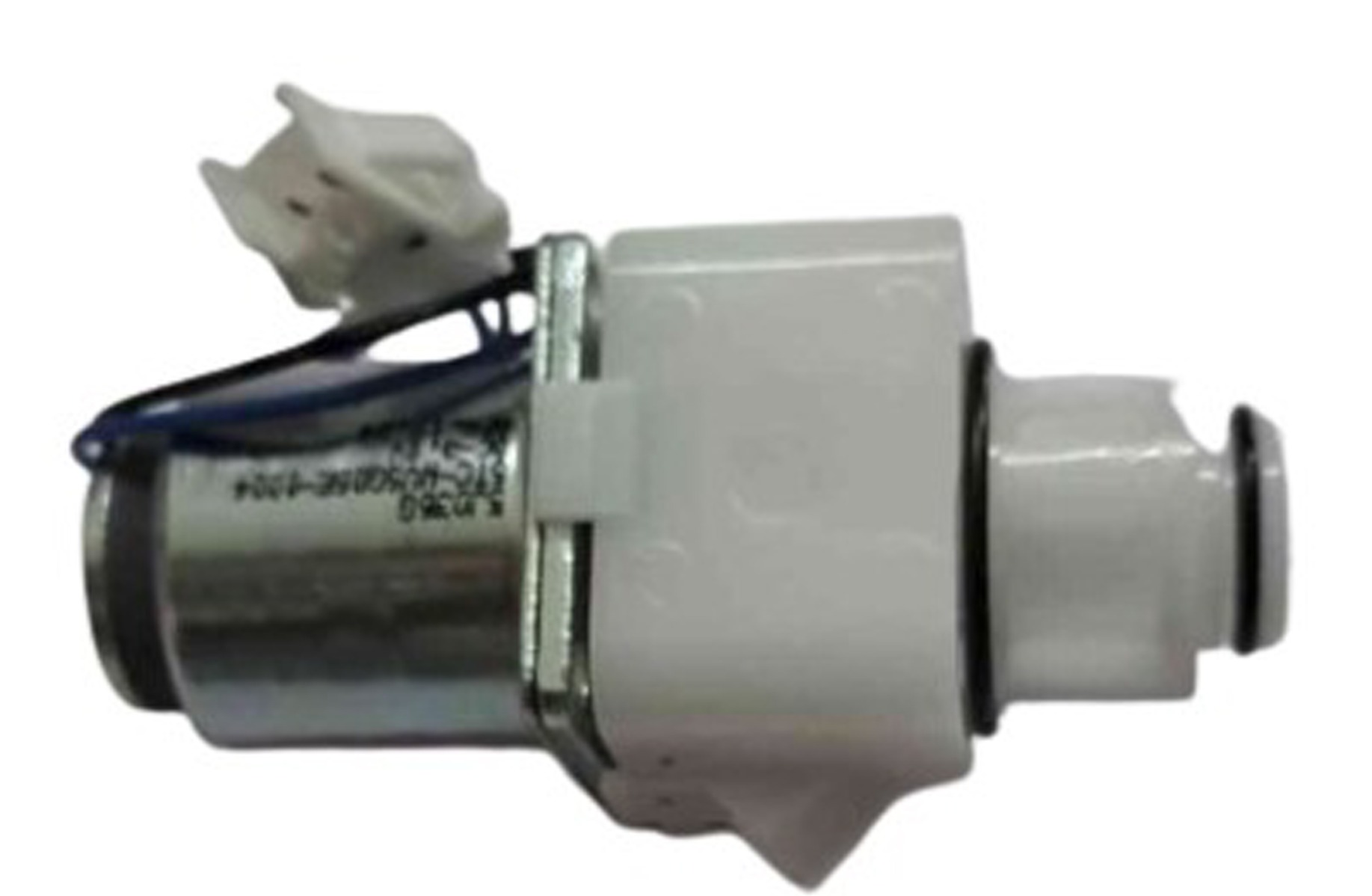

The TOTO DH818G is a solenoid valve assembly used in TOTO automatic urinal flush systems. It works together with the DH817G sensor/controller to control the flow of water during an automatic flush.
Details
- Part Number: DH818G
- Part Type: Solenoid Valve Assembly
- Function: Electromagnetic water control valve
- Application: TOTO concealed automatic urinal flush valve systems
- Compatible with: TOTO DUE115 concealed urinal flush valve and similar systems.
How it works
- The DH817G infrared sensor detects a user.
- After the user leaves, the controller sends an electrical signal.
- The DH818G solenoid valve opens briefly, allowing water to flow.
- The valve then closes automatically, stopping the water flow.
Main uses
- Controls automatic flushing.
- Ensures accurate flush volume.
- Prevents continuous water flow.
- Improves hygiene with touch-free operation.
- Helps conserve water by flushing only when required.
Common symptoms of a faulty DH818G
- Urinal does not flush.
- Continuous water flow after flushing.
- Weak or incomplete flush.
- Clicking sound from the controller but no water flow.
- Water leakage through the valve due to a worn diaphragm or debris.
The DH818G is a key electromechanical component in TOTO's automatic flushing system, converting the controller's electrical signal into the physical opening and closing of the water valve
The TOTO DH818G is a solenoid valve assembly used in TOTO automatic urinal flushing systems. Its primary purpose is to control the flow of water electronically during an automatic flush.
Uses of the TOTO DH818G
- Automatic flush control: Opens and closes the water supply when it receives an electrical signal from the DH817G sensor/controller.
- Touch-free operation: Enables hands-free flushing after a user leaves the urinal, improving restroom hygiene.
- Water conservation: Delivers water only for the programmed flush cycle, helping reduce water waste.
- Precise water flow regulation: Ensures the correct amount of water is released for each flush by opening only for the required duration.
- Reliable automated operation: Acts as the electromechanical actuator that converts the controller's electrical signal into water flow by moving an internal plunger.
Typical applications
The DH818G is commonly installed in:
- Commercial buildings
- Hotels
- Hospitals
- Shopping malls
- Airports
- Office buildings
It is used in TOTO concealed automatic urinal flush valve systems, including systems compatible with the DUE115 concealed flush valve.
If you're looking for service information, wiring details, or troubleshooting for the DH818G, I can also provide those.
