Toto Spares, Toto Parts, Toto Spare Parts, Spare Code No : DH824G.

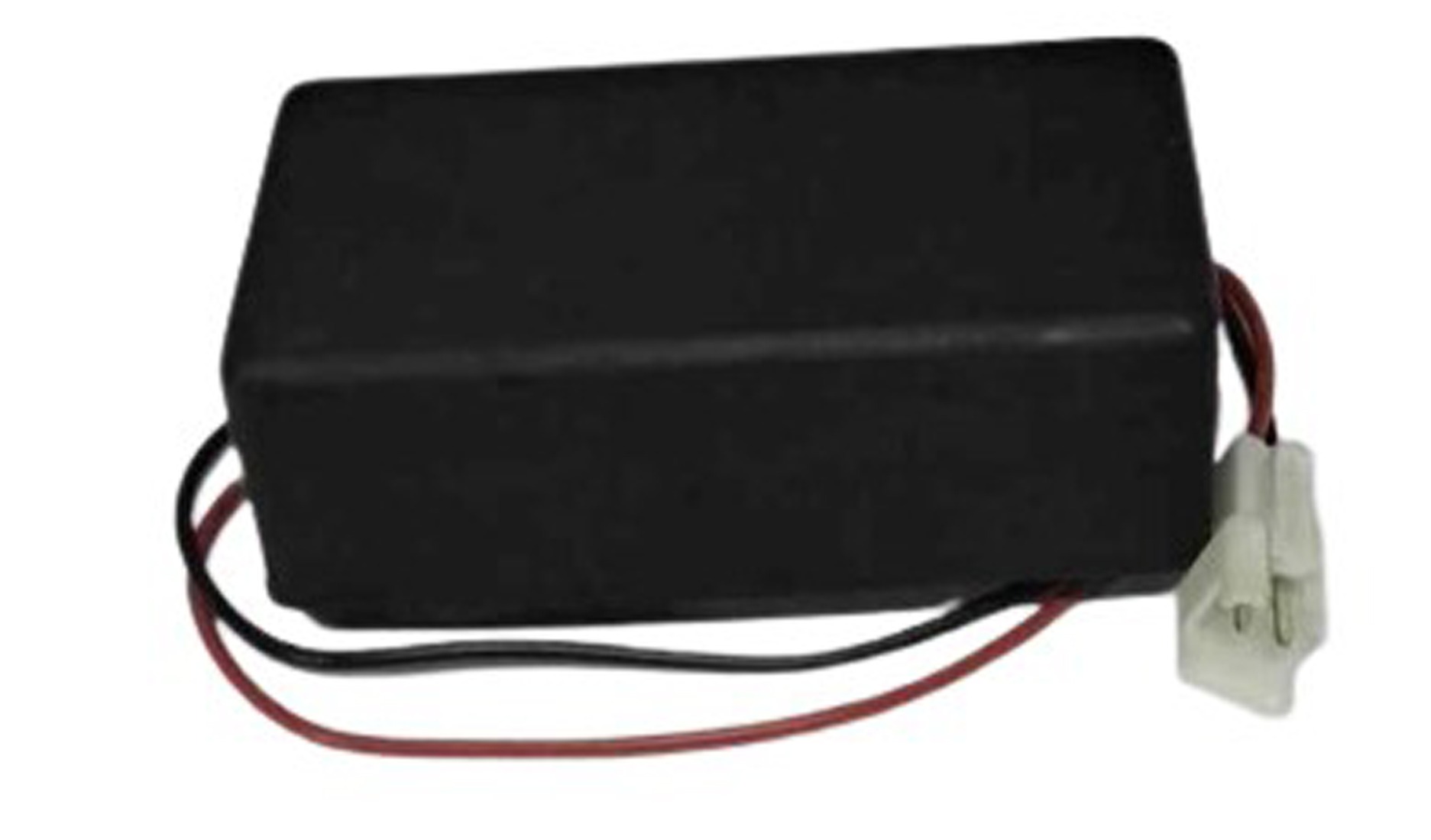

The TOTO DH824G is a battery box (battery holder/power supply module) used in certain TOTO automatic flush systems. It provides the DC power required for the electronic controller, infrared sensor, and solenoid valve when the unit is battery-operated rather than AC-powered.
Key details
- Part number: DH824G
- Part name: Battery Box (without batteries)
- Function: Houses the batteries and supplies power to the automatic flush valve electronics.
- Application: Used with the USWN900B TOTO automatic flush system.
Uses
- Supplies DC power to the controller.
- Powers the infrared sensor for touch-free detection.
- Provides power to the solenoid valve during the flush cycle.
- Designed as a replaceable spare if the battery compartment is damaged or corroded.
Difference between DH823G and DH824G
- DH823G: Electronic controller module that manages flush logic and controls the system.
- DH824G: Battery box that provides electrical power to the controller and other electronic components.
If you need the wiring diagram, battery specification (voltage/type), or exploded parts diagram for the DH824G, I can help locate those as well.
The TOTO DH824G is a battery box (battery holder/power module) used in selected TOTO automatic flush systems, specifically the USWN900B model. It is not a controller itself; its role is to provide electrical power to the system.
Uses of the DH824G battery box:
- Holds the batteries securely in the automatic flush unit.
- Supplies DC power to the electronic controller.
- Powers the infrared sensor that detects user presence.
- Provides power to the solenoid valve, allowing the flush valve to open and close automatically.
- Serves as a replacement spare part if the original battery compartment is damaged, corroded, or has faulty electrical contacts.
How it works in the system:
- Batteries are installed in the DH824G battery box.
- The battery box supplies power to the controller.
- The controller receives signals from the infrared sensor.
- When a user leaves, the controller energizes the solenoid valve to perform the automatic flush.
- The system then returns to standby, ready for the next use.
In summary:
- DH823G = Electronic controller (controls flushing logic).
- DH824G = Battery box (provides power to the controller and sensor system).
If you need the battery type, voltage, connector pinout, or wiring diagram for the DH824G, I can help you find those details as well.
