Toto spares, Toto Parts, Toto Spare Parts, Spare Code No : DH824G.

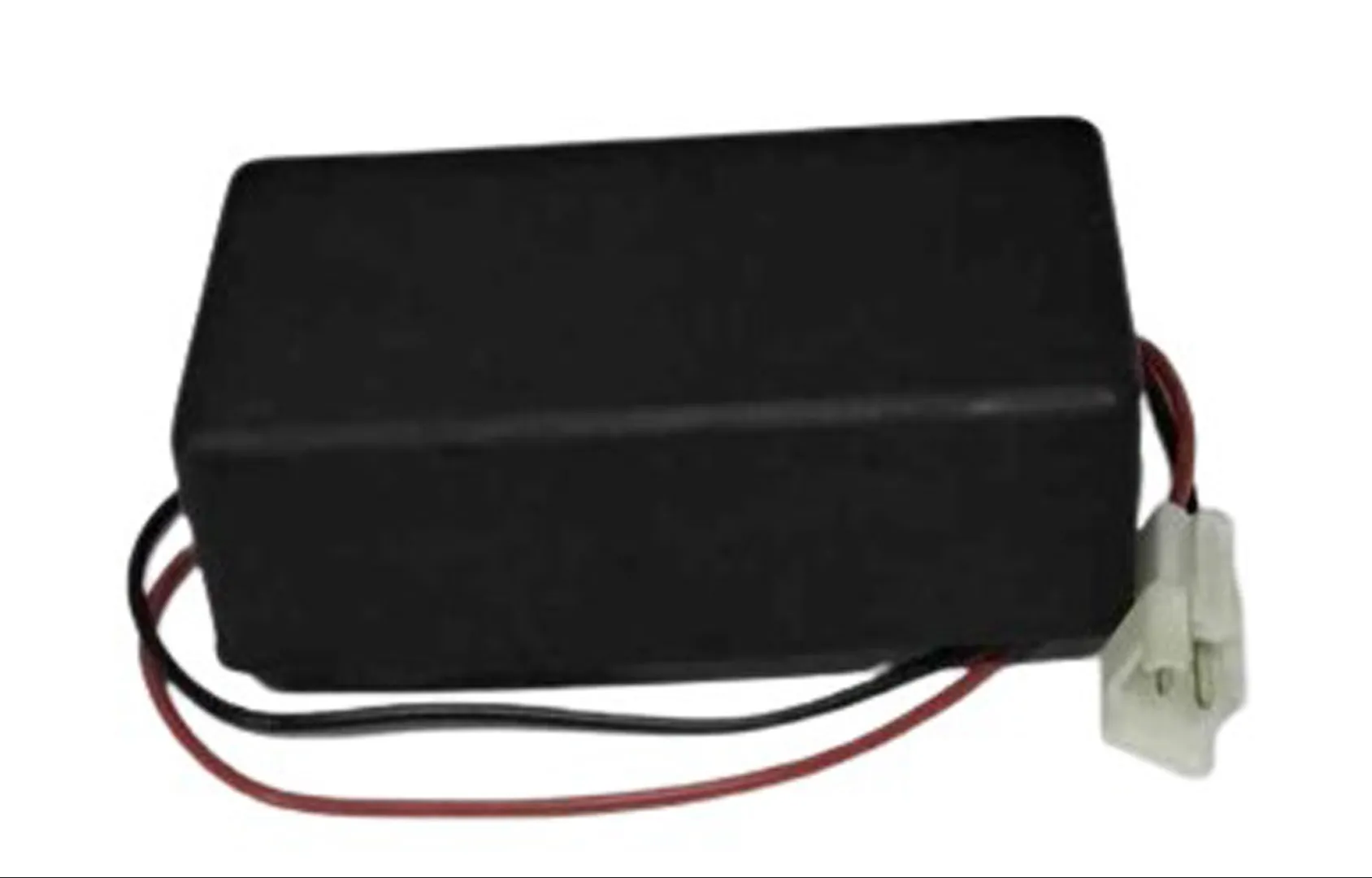

The TOTO DH824G is a battery box (battery holder) assembly used in TOTO automatic concealed urinal flush systems. It supplies electrical power to the sensor and controller when the system is battery-operated.
TOTO DH824G details
- Part Number: DH824G
- Part Type: Battery Box Assembly
- Function: Holds and connects the batteries that power the automatic flush system.
- Application: TOTO concealed automatic urinal flush valves, including systems compatible with the DUE115 series.
Main functions
- Stores the batteries securely in the flush valve assembly.
- Supplies power to the DH817G sensor/controller.
- Provides electrical power to operate the DH818G solenoid valve during flushing.
- Allows batteries to be replaced easily during routine maintenance.
- Ensures reliable operation of the automatic flushing system even where mains power is not used.
Typical features
- Battery holder with electrical connector.
- Designed for quick installation and replacement.
- Used as part of the concealed urinal flush valve assembly.
- Compatible with standard batteries specified by the TOTO system.
In a typical TOTO automatic urinal system:
- DH817G – Infrared sensor and controller.
- DH818G – Solenoid valve.
- DH824G – Battery box (power supply).
- DH867G – Sensor cover plate.
- DH868G – Stop valve.
The TOTO DH824G is a battery box (battery holder) assembly used in TOTO automatic urinal flush systems. Its main purpose is to provide a reliable power source for the electronic flushing components.
Uses of the TOTO DH824G
- Powers the automatic flush system by housing the batteries that supply electricity to the controller and sensor.
- Supplies power to the DH817G sensor/controller, enabling it to detect users and manage the flushing sequence.
- Provides power to the DH818G solenoid valve, allowing it to open and close the water flow during each flush.
- Supports battery-operated installations, making it suitable for locations where the flush system is designed to operate without a direct mains power connection.
- Simplifies maintenance, as the battery box can be removed to replace batteries without replacing the electronic control components.
Role in the flushing system
A typical TOTO automatic urinal flush system operates as follows:
- DH824G supplies electrical power.
- DH817G detects the user and controls the flush timing.
- DH818G receives the control signal and opens the water valve.
- The urinal flushes automatically, and the valve closes after the programmed flush cycle.
- The DH824G is therefore an essential power supply component that ensures the sensor and solenoid valve operate reliably in TOTO's automatic concealed urinal flushing systems.
