Toto spares, Toto Parts, Toto spare parts, Spare Code No ; DUE114UPK.

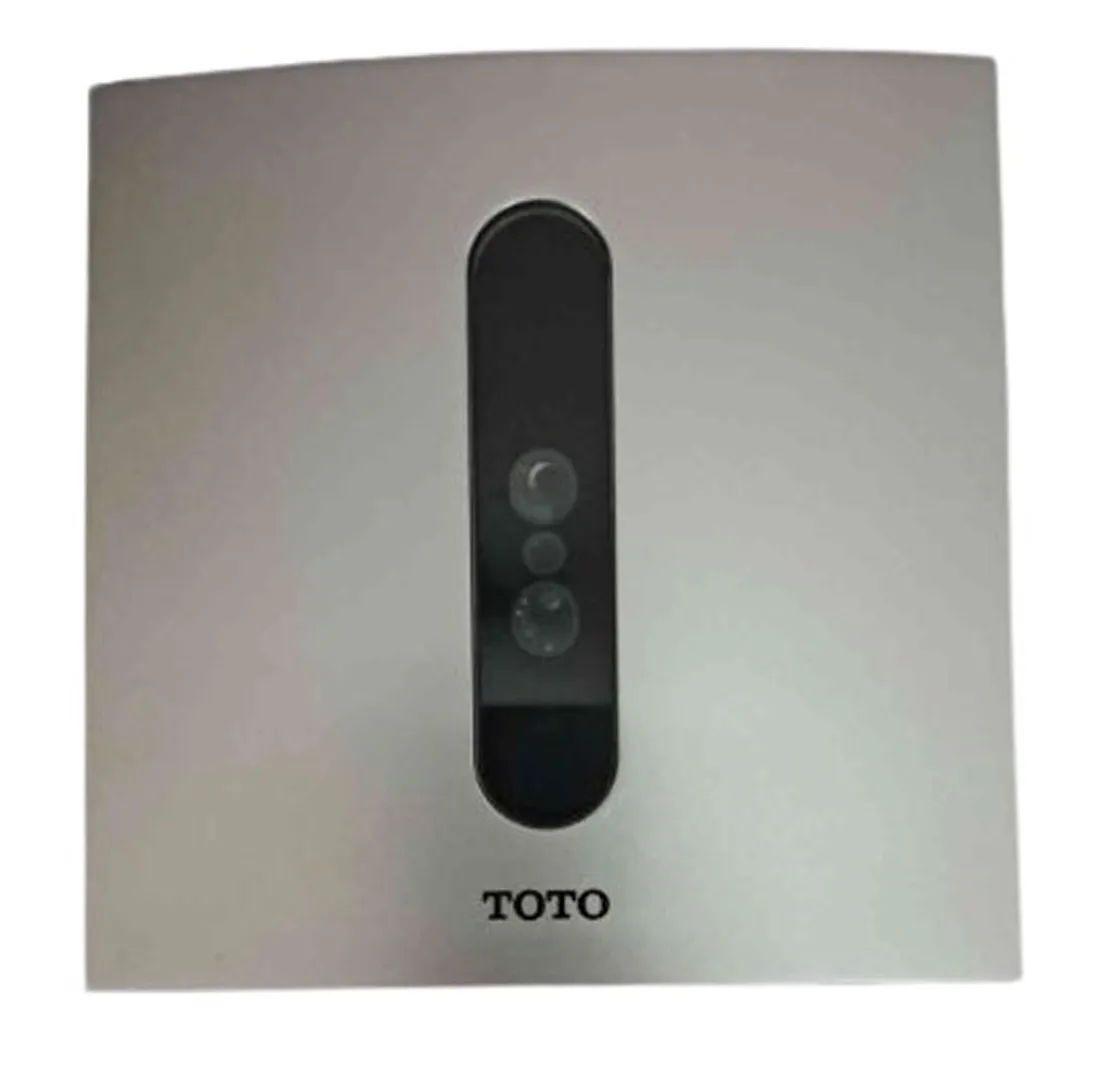

TOTO DUE114UPK — Details
DUE114UPK is a TOTO in-wall sensor flush valve for urinals, using DC/battery power. It is designed for concealed/in-wall installation and touchless flushing. T
TOTO
+1
SpecificationDUE114UPKProductIn-wall sensor urinal flush valvePowerDC / batteryFlush volume1.9 LOptional pre-flush1.2 LPanel size130 × 130 mmSensing distanceUp to 800 mm in front of sensorWater pressure0.05 MPa dynamic – 0.75 MPa staticOperating temperature1–55°CPanel materialResin/ABSInstallationConcealed/in-wallHSN84818090
TOTO's documentation confirms that DUE114UPK is the DC/battery version, while DUE114UPE is the AC version. R
Reborn TOTO Items
What it is used for
The DUE114UPK is used in public or residential urinals where automatic, touch-free flushing is required. An infrared sensor detects the user and activates the flush valve automatically.
TOTO
Important distinction: DUE114UPK is a complete sensor urinal flush valve assembly, rather than a small replacement component such as a gasket or solenoid alone.
If you want, I can also give you the DUE114UPK spare-parts list (sensor, solenoid valve, filter/strainer, battery box, diaphragm, etc.) with each spare-part code and its function.
TOTO DUE114UPK — Uses
DUE114UPK is a TOTO in-wall, sensor-operated urinal flush valve. It is the DC/battery-operated version. TOTO specifies it for automatic, touchless flushing of urinals. R
Reborn TOTO Items
+1
Main uses
- Automatic urinal flushing: Detects the user with an infrared sensor and automatically activates the flush. T
- TOTO
- Touchless operation: No need to press a manual flush button.
- Concealed/in-wall installation: The flush valve mechanism is installed inside the wall, with the sensor panel visible externally.
- Water-saving flushing: Standard flush volume is 1.9 L, with an optional 1.2 L pre-flush. T
- TOTO
- +1
- Public/commercial toilets: Suitable for places such as offices, hotels, malls, restaurants and other facilities where automatic urinal flushing is useful.
- Battery/DC operation: DUE114UPK uses DC/battery power, so it does not require an AC electrical connection like the DUE114UPE. R
- Reborn TOTO Items
Basic specifications
ItemDUE114UPKTypeIn-wall sensor urinal flush valveOperationInfrared automatic sensorPowerDC / batteryFlush volume1.9 LOptional pre-flush1.2 LSensor rangeWithin 800 mmPanel size130 × 130 mmWater pressure0.05 MPa dynamic – 0.75 MPa static
In simple terms: DUE114UPK is used to automatically flush a wall-mounted urinal after the user leaves, using a battery-powered infrared sensor.
If you're looking for DUE114UPK spare parts, I can also give you the filter/strainer, solenoid valve, sensor, battery and other internal spare-part codes and their individual uses.
TOTO : Control unit, toto Powercable, toto Rubber flapper, toto Signal Cable& Conduit Pipe, toto Right hook,
toto Screw, toto Concealed Automatic Urinal Flush Valve, toto Shower Hanger & Screw, toto check nut & lock on cartridge, toto Controller Unit, toto Cartridge, toto Fill Valve, toto HANDLE/KNOB, toto SSBolts &Nuts, toto PRESSURE CONTR.., toto Avante Wall Hung Toilet W/Invisible Fixing Kit, toto Flexible Hose, INDIA.
TOTO : Base Plate Assy, toto Soft Landing Unit, toto Soft Landing Unit, toto Damper dryer for WL .., toto DUMPER / PLASTIC LID ON WAND, toto Indication Substrate Assembly, toto Fixed Shower Head, toto Bath & Spout, toto Handle,
Toto thermostatic knob, toto Flange Cap, toto Flange Plate, toto Clamp for valve connector, toto FRAME, toto sensorunit, toto Towel Ring, toto IN WALL SENSOR URINAL FLUSH VALVE, toto Ceramic cartridge for Faucets Englanad.
