Toto spares, Toto parts, Toto spare parts, Spare code No : MC35A.
Here are the complete details and uses of the TOTO spare MC35A:
🔧 Product Overview
- Model: MC35A
- Brand: TOTO
- Type: Faucet cartridge (internal valve component)
- Application: Used inside single-lever faucets (mixers)
🧩 What is MC35A?

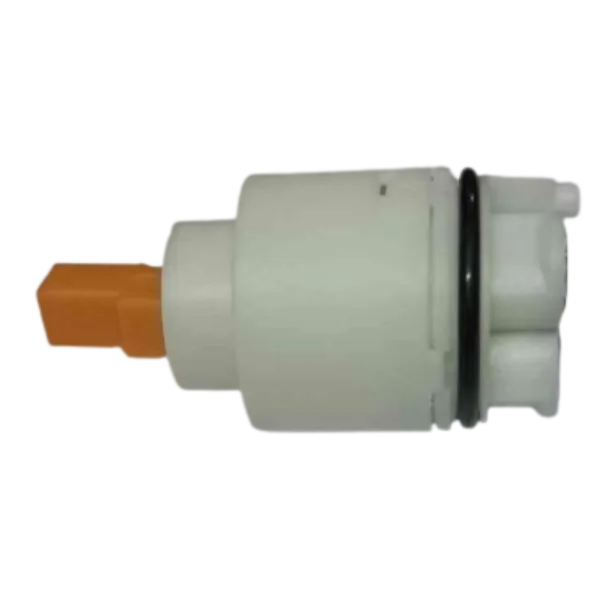

MC35A is a ceramic cartridge—the core internal part of a tap that:
- Controls water flow
- Mixes hot and cold water
- Enables smooth lever operation
👉 In simple terms:
It’s the “heart” of the faucet—not visible outside but critical for operation.
⚙️ Key Functions / Uses
- ✅ Controls on/off water flow
- ✅ Adjusts water temperature (hot & cold mix)
- ✅ Ensures smooth lever movement
- ✅ Prevents leakage inside the tap
- ✅ Maintains consistent water pressure
🚿 Where It Is Used
MC35A is commonly used in:
- Wash basin faucets (lavatory mixers)
- Single-lever taps in bathrooms & kitchens
- Commercial/public washroom faucets
Compatible TOTO Models (examples)
- TX108LD
- TX109LD / TX109LH / TX109LJ
- TX432SD / TX433SD
📐 Specifications
- Type: Ceramic disc cartridge
- Size: approx. 3.5 × 3.5 × 5.5 cm
- Weight: ~0.05 kg
- Material: High-durability ceramic + plastic body
- Installation: Inside faucet body (replaceable spare part)
🔄 When to Replace MC35A
You need to replace this cartridge if you notice:
- 🚱 Water leakage from spout even when closed
- 🔁 Stiff or loose lever movement
- 🌡️ Temperature not mixing properly
- 💧 Dripping tap (most common issue)
