TOTO WH013-T2 — Details

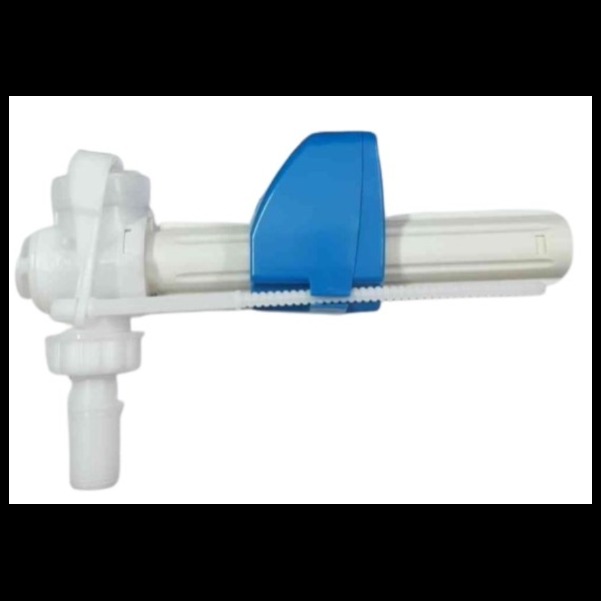

WH013-T2 is the TOTO fill/inlet valve for a concealed toilet cistern. TOTO's current Taiwan spare-parts database identifies it as 進水器 (inlet/fill valve).
ItemDetailsPart No.WH013-T2Part nameFill Valve / Inlet ValveFunctionControls the entry of fresh water into the toilet cisternTypeMechanical water inlet/fill valveMain applicationConcealed toilet tank/cisternTOTO models listedWH010, WH013RAlso listed forC761ETW/S760DETW, CW812J/WH035D, CW998B/WH036D, WH037DTOTO Taiwan 2026 priceNTD 1,300
TOTO's 2026 database, updated June 8, 2026, lists WH013-T2 for the above models.
In simple terms:
WH013-T2 = water inlet/fill valve. It refills the concealed cistern after flushing and stops the incoming water when the tank reaches its required level.
For comparison:
- WH013-T1 → Flush/drain valve
- WH013-T2 → Fill/inlet valve
- WH013-T3 → Flush panel
- WH013-T4 → Stop valve
- WH013-T5 → High-pressure flexible hose
Indian import records also specifically describe WH013-T2 as “FILL VALVE”, confirming its use in TOTO sanitary-ware systems.
TOTO WH013-T2 — Uses
WH013-T2 is the inlet/fill valve used inside a TOTO concealed toilet cistern. TOTO identifies the part as 進水器 (water inlet/fill valve).
Main uses:
- Allows fresh water to enter the concealed cistern after flushing.
- Controls the refilling of the tank.
- Shuts off the incoming water when the required water level is reached.
- Maintains the correct water level ready for the next flush.
- It is a mechanical water valve, not the flush/drain valve.
TOTO applications listed for WH013-T2 include:
- WH010
- WH013R
- C761ETW / S760DETW
- CW812J / WH035D
- CW998B / WH036D
- WH037D
A TOTO spare-parts listing in India also identifies WH013-T2 as “Inlet Valve.”
Simple identification:
WH013-T1 → Flush/Drain Valve
WH013-T2 → Fill/Inlet Valve
WH013-T4 → Angle/Stop Valve
So, if the concealed cistern does not fill, fills continuously, or does not shut off properly, WH013-T2 is one of the components to inspect.
