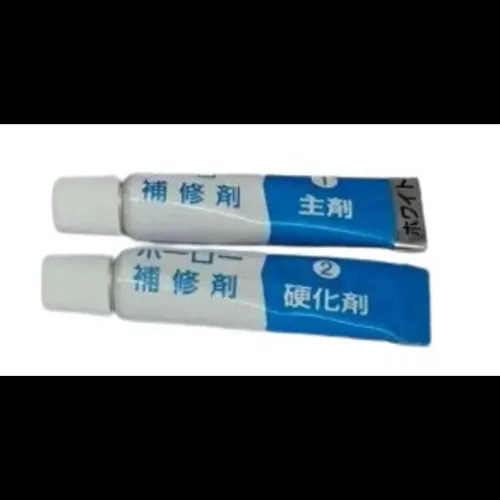

Toto Spares, Toto Parts, Toto Spare parts, Spare Code No : FZ1N,

TOTO spare part: FZ1N

• Part Number: FZ1N
• Part Name: Two-Tube Color & Bonding Kit (Enamel Repair Kit)
• Component Type: Two-part epoxy repair compound for TOTO enamel (porcelain-coated steel) products. It consists of a base resin and hardener that are mixed before application.

Details

• Purpose: Repairs small chips, scratches, and minor damage on TOTO enamel-coated surfaces.
• Composition: Two tubes (epoxy resin + hardener) that are mixed immediately before use.
• Available Colors: Sold in multiple color variants (for example, FZ1N#SF4 for Harvest Green). The suffix after # indicates the color, so the repair kit should match the product's original finish.

Typical applications

• Enamel bathtubs
• Enamel sinks
• Other TOTO enamel-coated fixtures with minor surface damage

Key features

• Repairs chips and small cracks in the enamel surface.
• Restores appearance and helps protect the exposed metal from corrosion.
• Intended for minor cosmetic repairs; it is not designed for repairing major structural damage.

The TOTO spare FZ1N is a Two-Tube Enamel Repair Kit (Color & Bonding Kit) used to repair minor damage on TOTO enamel-coated products, especiall…

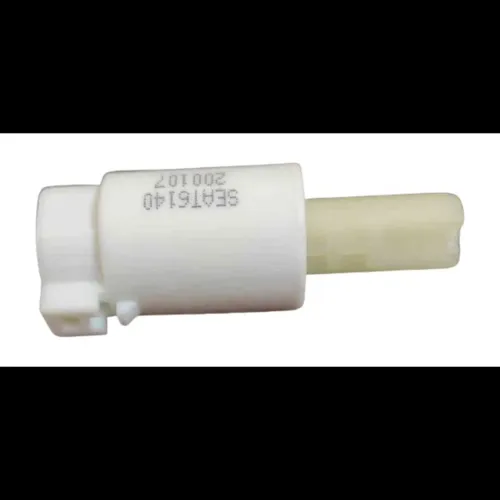

Toto Spares, Toto Parts, Toto Spare Parts, Spare Code No ; D46964R.

TOTO Spare Part: D46964R

• Part Number: D46964R
• Part Name: Soft Landing Unit (Seat)
• Component Type: Soft-close damper mechanism for the toilet seat.
• Compatible Product: Used with the TOTO TCW1211A Ecowasher seat and listed in TOTO spare parts catalogs as the seat soft-closing unit.

Function

The D46964R Soft Landing Unit is installed in the seat hinge assembly and provides the soft-close action for the toilet seat (not the lid).

Its functions include:

• Slows the seat as it closes to prevent slamming.
• Reduces noise during closing.
• Protects the seat and hinges from impact damage.
• Improves user safety by preventing sudden drops.
• Extends the service life of the seat hinge mechanism.

When should it be replaced?

Replace the D46964R if you notice:

• The seat drops quickly instead of closing slowly.
• The soft-close function has stopped working.
• The hinge feels loose or damaged.
• Oil leakage or physical damage from the damper mechanism.
• The seat makes a loud noise when closing.

Related Spare Parts

• D46964R – Soft Landing Unit (Seat)
• D46965R – Soft Landing Unit (Lid)

The TOTO spare D46964R is a Soft Landing Unit (Seat). It is installed inside the…

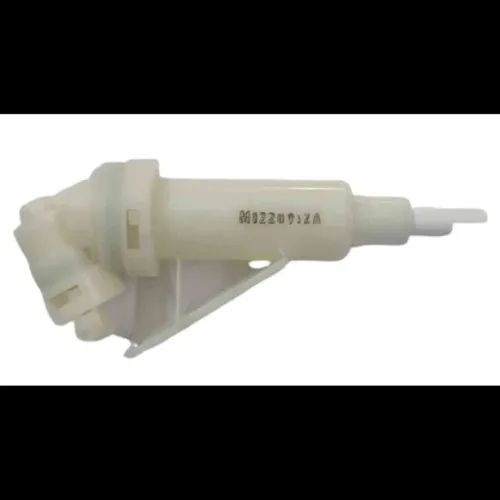

Toto Spares, Toto Parts, Toto Spare Parts, Spare Code No : D43800ZR.

TOTO spare part: D43800ZR

• Part Number: D43800ZR
• Part Name: Nozzle Unit (Wash Nozzle Assembly)
• Compatible Product: Primarily used as a replacement nozzle unit for the TOTO TCW07 soft-close bidet seat (and is also referenced for TCW07S/TCW08S in some parts catalogs).

Uses

The D43800ZR Nozzle Unit is the component that delivers cleansing water during bidet operation. Its functions include:

• Providing the rear wash spray.
• Delivering the front/feminine wash spray (on compatible models).
• Extending and retracting automatically during use.
• Ensuring proper spray direction and water distribution.
• Maintaining hygiene, as the nozzle is designed to self-clean before and/or after use on compatible seats.

When should it be replaced?

Replacement is recommended if you experience:

• Weak or uneven water spray.
• No water coming from the nozzle.
• A cracked, damaged, or clogged nozzle.
• The nozzle fails to extend or retract correctly.
• Persistent leakage from the nozzle assembly after cleaning.

Summary

ItemDetailsPart No.D43800ZRPart NameNozzle UnitApplicationReplacement wash nozzle assemblyCompatible ModelTOTO TCW07 (also referenced for TCW07S/TCW08S in…

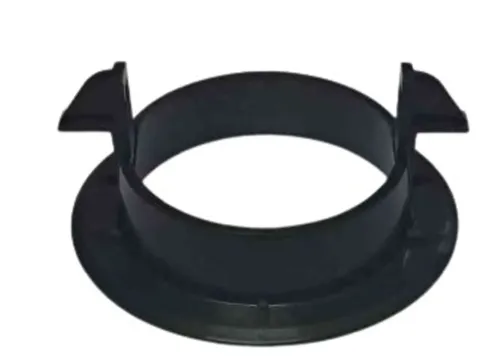

Toto Spares, Toto Parts, Toto Spare Parts, Spare Code No : CW132-AE0016.

The TOTO spare part CW132-AE0016 is identified as:

• Part Number: CW132-AE0016
• Part Name: Pressure Control Ring (Black)
• Manufacturer: TOTO
• Application: Used in selected TOTO wall-hung toilet/cistern assemblies as a pressure-regulating component in the flushing system. It helps maintain proper water flow and flushing performance.

If you need this spare, it's important to verify compatibility with your toilet model, as TOTO uses different pressure control rings across product series. The toilet's model number (for example, CW132M, CW132AM, etc.) is the best way to confirm the correct replacement.

You can also obtain genuine TOTO replacement parts through the official TOTO parts channels:

• TOTO Parts & Support

If you can provide your TOTO toilet model number (or a photo of the product label), I can confirm whether CW132-AE0016 is the correct spare and identify any compatible alternatives.

The TOTO spare CW132-AE0016 is a Pressure Control Ring (Black) used inside the flushing mechanism of selected TOTO toilet cisterns, particularly in the CW132 series.

Its primary uses are:

• Regulates water pressure and flow during the…

Toto Spares, Toto Parts, Toto Spare Parts, Spare Code No : B5071.

The TOTO spare part B5071 is a handle (lever) used with the TS886GW flush valve assembly.

Part details:

• Part number: B5071 (TS886GW)
• Part name: Handle
• Compatible assembly: TS886GW
• Function: Manual operating handle for the flush valve mechanism. It is the external lever that actuates the internal flushing mechanism to start the flush cycle.

Typical uses:

• Replacing a broken or worn flush handle.
• Restoring proper manual operation of the flush valve.
• Repairing loose or damaged actuator handles on TS886GW flush valve assemblies.

The same parts listing also shows related service parts for the TS886GW assembly, such as:

• B6067 – Water shut-off cap (used with TS886, TS904, TS864, and TS865 models).

If you need:

• an exploded parts diagram for the TS886GW assembly,
• the dimensions of B5071, or
• installation instructions,

let me know the complete TOTO flush valve or toilet model, and I can help identify all compatible replacement parts.

TOTO spare part B5071 is a manual flush handle (lever) for the TS886GW flush valve assembly. It is the external handle that the user presses or turns to actuate the flush mechanism.

Uses of B5071:

• Operates the TS88…

Smallest Ground Floor Plan :

If your goal is the smallest practical ground floor plan for a home, a compact 1BHK can fit in 250–400 sq ft (23–37 m²) while still providing the essentials. Efficient layouts often combine the living and dining areas, use a compact kitchen, and minimize corridor space.

A very compact example (about 20 ft × 20 ft = 400 sq ft) could be:

SpaceApprox. SizeLiving room10 ft × 10 ftBedroom10 ft × 10 ftKitchen6 ft × 8 ftBathroom4 ft × 7 ftUtility/Wash3 ft × 6 ft

Example arrangement:

+----------------------+ | Living | Bedroom | |10'x10' |10'x10' | +---------+------------+ |Kitchen | Bath/WC | | 6'x8' | 4'x7' | +---------+------------+

For even smaller homes:

• 200–250 sq ft: Studio layout (living, sleeping, and kitchen combined).
• 300–400 sq ft: Compact 1BHK.
• 500–650 sq ft: Comfortable 2BHK.

If you're planning to build, tell me:

• Your plot size (e.g., 15×20 ft, 20×30 ft, 20×40 ft).
• Number of bedrooms (1BHK or 2BHK).
• Whether you need car parking or a staircase for a future first floor.

I can then create an optimized ground floor plan for your plot.

Our Service All Over India.

Company Name : Bharat Design services.

Web : www.bechennai.com.

Mobile No : 888 333 33 22.

Toto Spares, Toto Parts, Toto Spare Parts, Spare Code No : 97766.

The TOTO part 97766 is typically listed under the full part number TH97766.

Part details:

• Part number: TH97766
• Part name: Valve Body (Japanese: バルブ本体)
• Component type: Replacement valve body
• Material: Synthetic resin (plastic)
• Production start: January 2017
• Status: Active genuine TOTO service part
• Sub-parts: The valve body has its own lower-level replacement parts available.

Typical use:

The TH97766 valve body is used in TOTO water control assemblies, where it:

• Houses the internal valve mechanism.
• Controls water flow within the fixture.
• Serves as the main body to which internal seals and moving valve components are fitted.

The public TOTO parts catalog identifies TH97766 as a Valve Body, but it does not specify the compatible toilet, faucet, or flush valve models in the summary listing. Compatibility is determined from the exploded parts diagram for the specific TOTO product.

If you're trying to identify where TH97766 is used, send me the TOTO product model number (for example, a toilet, flush valve, faucet, or concealed cistern model). I can then identify the exact assembly, show where TH97766 fits, and list the related spare…

Toto Spares, Toto Parts, Toto Spare Parts, Spare Code No : 92610SW.

Based on available TOTO parts information, 92610SW is identified as a Spacer (Japanese: スペーサー / Supēsā). It is a genuine TOTO replacement spacer used in certain TOTO plumbing assemblies.

Part details:

• Part number: 92610SW
• Part name: Spacer
• Type: Genuine TOTO replacement component
• Status: Listed as a discontinued (end-of-sale) service part in TOTO's parts catalog.

The public catalog entry does not specify:

• Dimensions
• Material
• Compatible toilet/cistern models
• Assembly location

Those details are typically available only in the exploded parts diagram for the specific TOTO product model in which the spacer is used.

If you need the exact specifications or compatible models for 92610SW, please provide either:

• the TOTO toilet/cistern model number (for example, CW..., SW..., or WH...), or
• a photo of the product nameplate or the installation.

With the model number, I can identify where 92610SW is used, show its position in the exploded view, and provide any available dimensions or replacement information.

The TOTO spare part 92610SW is a spacer (スペーサー). Based on TOTO's service parts catalog, it is a genuine replacement component used to…

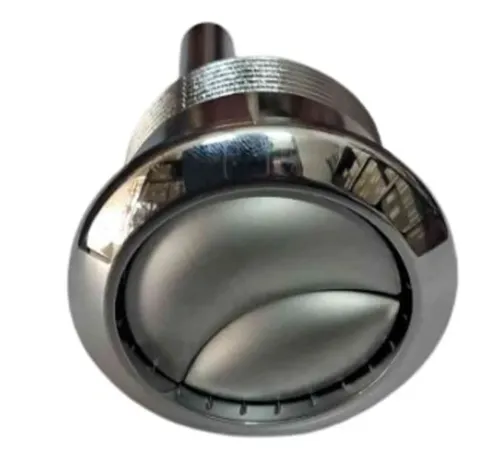

Toto Spares, Toto Parts, Toto Spare Parts, Spare Code No : 170.283.00.1

 you're looking for TOTO spare part 170.283.00.1, it appears to be a dual-flush push button/control plate assembly for a concealed cistern.

You can find information or make an inquiry here:

• Bharat Enterprises – TOTO Spare 170.283.00.1

If you need help sourcing the correct replacement, please tell me:

• Which country you're in.
• The TOTO toilet or cistern model number (or share a photo of the flush plate or inside the cistern).

I can then help identify the exact compatible spare and suggest where to buy it.

The TOTO spare part 170.283.00.1 is a dual-flush actuator (flush button/control plate) assembly used with selected TOTO concealed cisterns. It is the external push-button mechanism that operates the internal dual-flush valve.

Key details:

• Part number: 170.283.00.1
• Part type: Dual-flush push button / actuator assembly
• Application: TOTO concealed cisterns (in-wall flushing systems)
• Function: Operates both the full-flush and half-flush mechanisms through the concealed cistern actuator.

This spare is typically replaced when:

• The flush buttons are broken or damaged.
• The buttons become loose or fail to activate the flush…

Ground and first floor Partly Terrace Drawing :

A Ground and First Floor Partly Terrace Drawing is used when a building has a terrace over only part of the first floor instead of a full second floor. It helps architects, engineers, and contractors understand the building layout and construction.

Uses of a Ground and First Floor Partly Terrace Drawing

• Architectural PlanningShows the layout of the ground floor, first floor, and terrace area.
• Helps visualize room arrangements and circulation.
• Construction ExecutionGuides contractors during construction.
• Indicates walls, columns, stairs, doors, windows, and terrace boundaries.
• Structural DesignAssists structural engineers in designing beams, slabs, columns, and load distribution.
• Identifies areas with roof slabs and open terrace.
• Building ApprovalSubmitted to local authorities as part of the building plan approval process.
• Demonstrates compliance with building regulations and setbacks.
• Quantity EstimationUsed to calculate materials such as concrete, bricks, steel, flooring, waterproofing, and finishes.
• Helps prepare cost estimates and bills of quantities.
• Service PlanningAssists in planning electrical, plumbing, drainage, and rainwater systems.
• Ind…
