Toto spares, Toto parts, Toto Spare parts, Spare code no : SHXB34,TOTO spare part: SHXB34 is an elec...

Toto spares, Toto parts, Toto Spare parts, Spare code no : SHXB34,

TOTO spare part: SHXB34 is an electronic controller assembly used in TOTO automatic sensor faucet (touchless tap) systems.

🔧 SHXB34 – Spare Part Details

Part name: Controller Assembly
Brand: TOTO
Used in: Automatic sensor faucets / touchless basin taps
Location: Installed inside the control box under the wash basin or inside the faucet module.

⚙️ Function

The SHXB34 controller assembly is the main electronic control unit of the sensor faucet.

Main functions:

Receives signal from the infrared sensor
Processes the signal through the control circuit board
Activates the solenoid valve to start or stop water flow
Controls water timing and automatic shut-off for hygiene and water saving.

🧩 Related TOTO parts in the same system

These components normally work together with SHXB34 in an auto faucet system:

Sensor unit – detects hands
Solenoid valve – opens/closes water flow
Control card / controller – electronic control
Flow regulator – controls water pressure.

📍 Typical Applications

SHXB34 is used in:

TOTO touchless basin faucets
TOTO automatic wash basin taps
Commercial restroom sensor tap installations (hotels, malls, airports).

✅ Simple…

Read updateMar 5th, 2026 1:20 PM

Toto spares, Toto Parts, Toto spare parts, Spare code no : SHXAP02,TOTO spare part: SHXAP02 is a flo...

Toto spares, Toto Parts, Toto spare parts, Spare code no : SHXAP02,

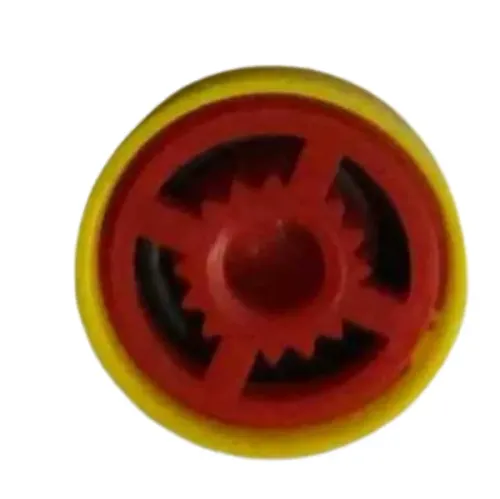

TOTO spare part: SHXAP02 is a flow regulator used in TOTO automatic sensor flush valve systems (mainly for urinals or WC auto-flush units).

🔧 SHXAP02 – Details

Part name: Flow Regulator
Brand: TOTO
Used in: Automatic sensor flush valve assemblies
Installation location: Inside the flush valve / water line of the concealed flush system.

⚙️ Function

The flow regulator (SHXAP02) controls the water flow rate during flushing.

Main purposes:

Regulates amount of water passing through the valve
Maintains correct flushing pressure
Prevents excess water flow or splashing
Helps maintain standard flush volume (LPF) in TOTO urinal systems.

🧩 Related parts in the same assembly

Common components used together in TOTO sensor flush units:

Sensor unit – detects user presence
Solenoid valve – opens/closes water flow
Control unit – manages electronic signals
Battery box / power supply
Main control valve
Flow regulator (SHXAP02) – adjusts water flow.

🪛 Simple explanation

👉 SHXAP02 = small internal flow-control part that regulates water flow in a TOTO automatic flush system.

If you want, tell me:

TOTO model number (example: DUE115UPKV1, DCE603UE, etc.)
Or se…

Read updateMar 5th, 2026 12:50 PM

Toto spares, Toto parts, Toto spare prts, Spare code no : SHXA40,TOTO spare code: SHXA40 is a contro...

Toto spares, Toto parts, Toto spare prts, Spare code no : SHXA40,

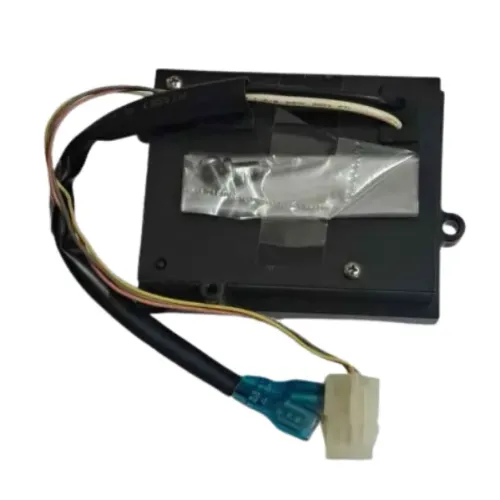

TOTO spare code: SHXA40 is a controller unit (electronic control board) used in TOTO automatic sensor flush systems for toilets or urinals.

🔧 SHXA40 – Details

Part name: Controller Unit
Brand: TOTO
Used in: Automatic sensor flush valve systems (concealed type).
Function:
Controls the sensor flushing operation.
Receives signal from the infrared sensor.
Activates the solenoid valve to release water for flushing.
Manages timing and power supply for the system.

🧩 Parts connected with SHXA40

In the same flush system assembly:

Sensor unit – detects user presence
Solenoid valve – opens water flow
Cover plate / override button – manual flush
Controller unit (SHXA40) – electronic control for the above parts

📍 Where it is installed

Inside the concealed flush valve box behind the wall
Used in TOTO automatic urinal or WC flush systems (AC or DC models).

✅ Simple explanation:

SHXA40 = electronic controller board that runs the sensor flush system.

✔️ If you want, tell me:

Urinal or WC model number (example: DUE115UPE, etc.)
Or send a photo of the flush panel

TOTO : Control unit, toto Powercable, toto Rubber flapper, toto Signal Cable& Conduit…

Read updateMar 5th, 2026 12:42 PM

Toto spares, Toto parts, Toto spare parts, Spare code no : SHXA53, TOTO spare code: SHXA53 is a meta...

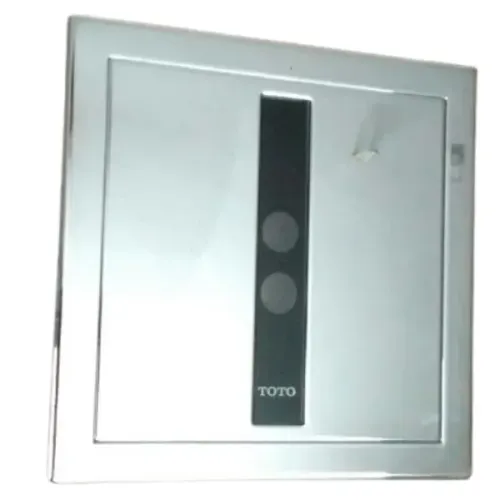

Toto spares, Toto parts, Toto spare parts, Spare code no : SHXA53, TOTO spare code: SHXA53 is a metal front plate with frame used in some TOTO sensor-based urinal flush systems.

🔧 Use of SHXA53

It is the front cover plate (metal) with frame for concealed sensor urinal flush valve units.
Installed on the front of the urinal flush system panel (wall-mounted).
Purpose:
Protects internal components (sensor, valve, electronics).
Provides the visible stainless/metal finish plate on the wall.
Holds the sensor window and mounting frame.

📍 Where it is used

Typically used in:

TOTO sensor urinals (automatic flushing)
Concealed battery / AC flush valve systems
Models like TOTO concealed urinal systems (DUE series etc.)

🧩 Related spare parts (same system)

Examples in the same assembly:

SHXAS13 – Sensor unit
SHXAV03 – Solenoid valve
SHXA12 – Battery box
SHXA66 – Main control valve
These parts work together in automatic urinal flush systems.

✅ Simple explanation:

SHXA53 = front metal cover plate + frame for TOTO sensor urinal flush panel.

TOTO : Control unit, toto Powercable, toto Rubber flapper, toto Signal Cable& Conduit Pipe, toto Right hook,

toto Screw, toto Concealed Automatic Urinal Flush Valve, toto…

Read updateMar 5th, 2026 12:36 PM

Toto spares, Toto Parts, Toto Spare parts, Spare code no : SHXBP54N,The spare TOTO part code SHXBP54...

Toto spares, Toto Parts, Toto Spare parts, Spare code no : SHXBP54N,

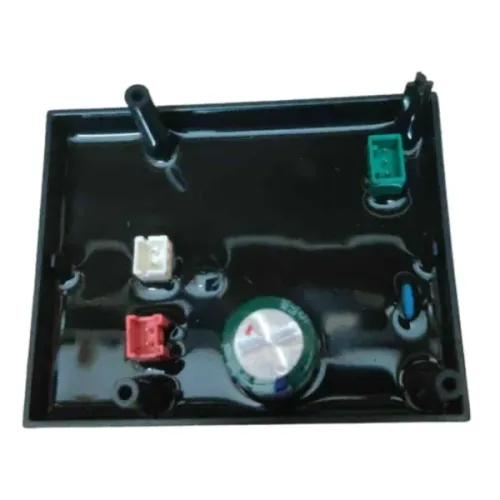

The spare TOTO part code SHXBP54N is a Control Card / Control Board used inside certain automatic faucet / sensor faucet systems.

TOTO Spare: SHXBP54N – Details

Part Number: SHXBP54N
Part Name: Control Card / Controller PCB
Category: Sensor faucet / automatic tap electronic spare
Function:
Controls the infrared sensor faucet electronics
Sends signal to solenoid valve to open/close water flow
Manages sensor detection, timing, and water flow logic
Used with: TOTO auto faucets / sensor taps in commercial wash basins.

Typical Components Connected to This Board

Usually works with:

Sensor unit
Solenoid valve
Power supply / adapter
Faucet control wiring

Symptoms When SHXBP54N Is Faulty

You may need this spare if:

Sensor faucet not responding
Water runs continuously or does not open
Sensor light works but valve not activating
Intermittent operation

Where It Is Installed

Inside the control box of TOTO sensor faucet
Usually mounted behind the basin / under the counter panel

✅ Important: TOTO often uses different control boards for different faucet models, so compatibility must be confirmed with the exact faucet model number.

✔️ If you want, send:

Ph…

Read updateMar 5th, 2026 11:53 AM

Toto spares, Toto Parts, Toto spare Parts, Spare code no : SHXBS08 ere’s what SHXBS08 refers to in...

Toto spares, Toto Parts, Toto spare Parts, Spare code no : SHXBS08

ere’s what SHXBS08 refers to in the context of TOTO spares:

🧩 What SHXBS08 Is

SHXBS08 is a sensor spare part used in TOTO automatic (infrared) faucets — specifically the sensing element or sensor assembly that detects hands to turn water on/off.
It’s typically listed under TOTO faucet spare parts along with other components like controllers, solenoid valves, cartridges, etc.

🤖 Likely Use / Function

Purpose: It’s part of the sensor / detection system in a touchless faucet — the component that senses the presence of hands to activate the water flow. This is the core part of touchless operation in automatic faucets, contributing to hands-free hygiene and water saving.
Application: Installed inside the faucet body behind the spout or control unit of an automatic sensor tap. When it detects movement (infrared detection), it signals the control unit to open the solenoid valve and start the water flow.
Where It’s Used: Commonly found in sensor-activated faucets in commercial bathrooms, public washrooms, kitchens, and healthcare facilities where TOTO touchless tech is installed.

TOTO : Control unit, toto Powercable, toto…

Read updateFeb 27th, 2026 6:28 PM

Toto spares, Toto spare parts, Spare code no : SHXCC56, Here’s what SHXCC56 refers to in TOTO spare ...

Toto spares, Toto spare parts, Spare code no : SHXCC56, Here’s what SHXCC56 refers to in TOTO spare parts listings:

🧩 Part Overview — SHXCC56

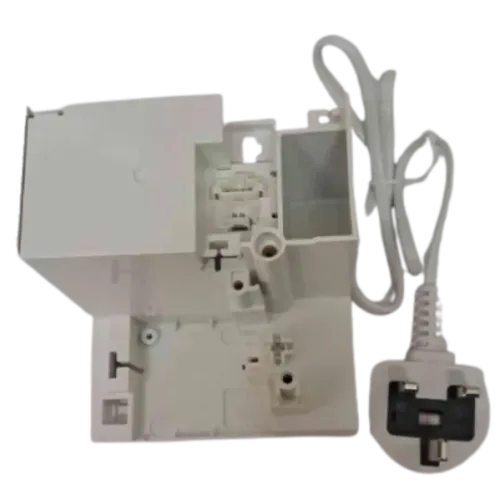

SHXCC56 is listed as a controller unit (Controller) in TOTO’s spare parts catalog. Specifically, it appears under spare listings for NEOREST / Washlet-type toilets and electronic toilet systems.
In these advanced electronic toilet units, the controller is the main electronic control board or module that manages the functions of the system — such as flushing logic, sensor inputs, bidet operations, seat heating, water heating, and other automated features.

⚙️ Typical role of such a controller:

Interfaces with sensors (seat sensor, user detection).
Controls motor outputs (flush motor, valve actuators).
Manages power distribution and logic for washlet/toilet electronics.

Because SHXCC56 is just listed as Controller in parts catalogs without a public datasheet or full spec listing, detailed specifications like voltage, wiring harness, exact pinouts, and OEM replacement part numbers typically come from the specific TOTO model’s service manual rather than general spare codes.

The code SHXBV09 in TOTO’s spare parts listings refers to a solenoid valve.
A solenoid valve (in faucets/auto-faucets) is an electromechanical device that controls the flow of water by opening or closing when an electrical signal is applied. Solenoid valves are common in automatic sensor faucets and auto flush fixtures.

🧩 What a Solenoid Valve Does

Controls water flow: Opens and closes the water path based on electrical input.
Used in sensor-activated faucets and other automatic plumbing fixtures (e.g., automatic washbasin taps).
Typical failure symptoms: Water not starting or stopping properly, sensor tap dripping, or not responding.

📝 Notes

SHXBV09 is a generic TOTO spare part code without publicly shared official specifications (voltage, size, thread type, flow rating) on regular parts catalogs.
For exact compatibility and electrical specs, the fixture model number (e.g., the model of the automatic faucet / flush unit it came from) is needed. Manufacturers often release solenoid valves specific to series.

SHXBV08 is listed as a Solenoid Valve in TOTO’s spare parts catalog for faucets/auto-faucets and washroom fixtures. This means it’s an electromechanical valve used to start/stop water flow when energized, typically in sensor-activated taps or automatic flushing systems.

🧩 What a Solenoid Valve (like SHXBV08) Does

A solenoid valve in TOTO fixtures generally:

Is an electromagnetic control valve that opens/closes water flow when power is applied.
Is used in automatic sensor faucets, automatic flush valves, or other electronically controlled plumbing products.
Is a common replacement part when the valve fails to open/close properly (leads to water not shutting off or not flowing).

📌 Key Notes

There is no detailed official specification sheet or image available directly under the SHXBV08 number in the general listing; most catalogs simply list it as a Solenoid Valve part.
For exact compatibility, model-specific documentation or a TOTO parts breakdown diagram (from the specific faucet/flush unit you have) is usually required — the…
