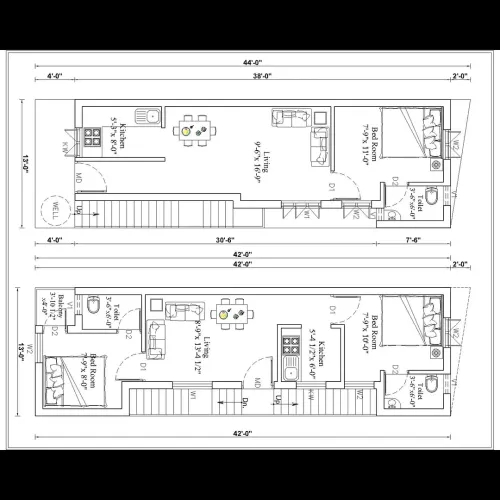

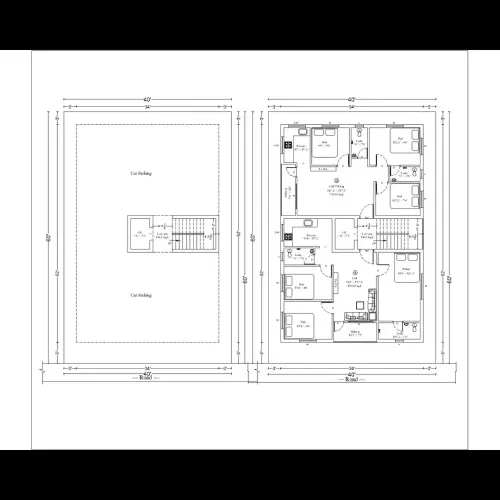

Bungalow Housing Drawing Plan

Here’s a detailed guide to understanding and preparing bungalow drawing plans — including what’s shown, how they’re organized, and what details are required for construction and approval.

🏡 1. Types of Drawings in a Bungalow Plan

Type of DrawingDescriptionPurposeSite PlanShows the plot boundary, approach road, setbacks, and north direction.For municipal approval and planning.Floor PlanHorizontal layout showing walls, doors, windows, and furniture.For room layout and circulation planning.ElevationExternal view of the bungalow from all sides (front, rear, side).To visualize exterior design.SectionVertical cut-through of the building showing heights and floor levels.For understanding structure and heights.Electrical PlanShows positions of switches, lights, fans, and wiring.For electrical installation.Plumbing PlanWater supply and drainage layout.For plumbing and sanitary works.Foundation & Structural PlanFooting layout, beam, column, and slab reinforcement details.For civil construction.Roof PlanLayout of roof slab, slopes, and water outlets.For roof construction.Door & Window ScheduleSizes, types, and numbering of doors and windows.For carpentry…

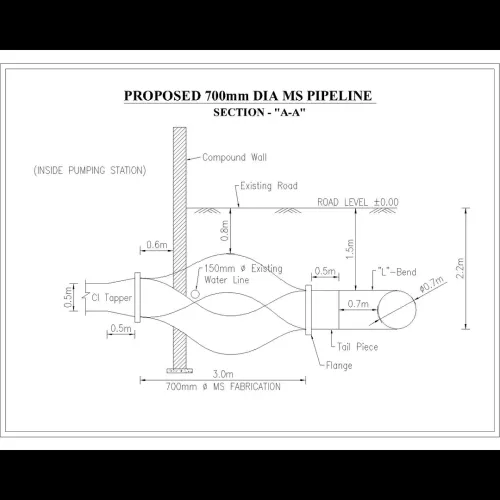

Pipe line drawing :

Here’s a general overview of pipeline drawing details in engineering:

1. Types of Pipeline Drawings

TypeDescriptionPurposePFD (Process Flow Diagram)Simplified representation showing flow paths of fluids and main equipment.To understand process sequence.P&ID (Piping and Instrumentation Diagram)Shows all process lines, instruments, valves, and control logic.For design, operation, and control reference.Piping GA (General Arrangement) DrawingPlan and elevation views showing routing, equipment, and supports.For layout and space planning.Isometric Drawing3D-type single-line drawing showing line lengths, fittings, and elevations.For fabrication and installation.Support DrawingShows pipe supports, hangers, and anchor points.For stress and installation reference.

2. Typical Details Shown in a Piping Drawing

• Line number (unique ID for each pipe)
•

• Pipe size and schedule
•

• Material specification (CS, SS, PVC, etc.)
•

• Flow direction
•

• Valves and fittings
•

• Insulation and heat tracing details
•

• Welding joints and flange types
•

• Elevation levels
•

• Support types and spacing
•

• Testing requirements (hydrotest pressure, etc.)

3. Common Symbols and Notations

• Lines:
• Solid = Process line
•

• Dashed = Instrument air…

Rectangular Building :

A rectangular building is a structure whose floor plan (footprint) has a rectangular shape — that is, two pairs of parallel sides with right angles.

It’s the most common and efficient building shape used in architecture, civil engineering, and Vastu design.

🧱 2. Why Rectangular Buildings Are Commonly Used

Reason Description Structural Efficiency Simple geometry means easier foundation design, regular column spacing, and even load distribution. Space Utilization Rooms can be organized neatly in grids — no awkward corners or wasted space. Construction Cost Easier formwork, fewer custom shapes → lower cost. Flexibility Suitable for residential, commercial, institutional, and industrial uses. Vastu Shastra Preference Rectangular (and square) plots/buildings are considered highly auspicious — symbolizing balance and harmony.

🧭 3. Rectangular Building in Vastu Shastra

According to Vastu principles:

• Rectangular or square shapes are ideal for both plots and buildings.
•

• The length-to-breadth ratio should ideally not exceed 1:2 (for balanced energy flow).
•

• Uneven, L-shaped, or triangular structures can cause energy imbalance (unless corrected).

Vāstu Guidelines for a…

Coarse Plot with Schematic Drawing :

A Coarse Plot Drawing (also called a Preliminary or Concept Plot Layout) is the very first draft of how your land (plot) will be developed — before making detailed architectural or structural plans.

It’s called “coarse” because it shows only the major components — not exact wall thicknesses or finishes.

It combines:

• The plot layout (land area with boundaries, road, setbacks)
•

• A basic schematic drawing (building position, orientation, and room zones)

🎯 2. Purpose of a Coarse Plot + Schematic Drawing

Objective Description Site Utilization Shows how much of the plot will be used for building vs. open space. Orientation & Vastu Alignment Helps ensure the structure faces the correct direction (East/North).Approval Readiness Early draft for discussions before formal submission to the local authority (e.g., Chennai Corporation / CMDA).Design Planning Decides the best location for rooms, parking, and service areas before final design. Client & Architect Coordination Quick visual to discuss requirements.

📋 3. Key Details Included in a Coarse Plot + Schematic Drawing

A. Plot-Level Details

Item Description Plot size and area e.g 30'×40' = 1200 sq.ft Bounda…

Plot Layout Area :

A Plot Layout Area (or Site Layout Plan) is a scaled drawing showing how the entire land parcel (plot) will be used and divided for building, open spaces, parking, services, and landscaping.

It is the first and most essential drawing prepared for:

• Planning permission (municipal approval)
•

• Proper site development
•

• Vastu orientation and building placement
•

• Construction reference

📋 2. Why a Plot Layout Plan Is Needed

Purpose Description Regulatory Approval Municipal bodies (like Chennai Corporation / CMDA) require a site layout for plan approval. Space Planning To understand how much area can be built and what must remain open (setbacks, open-to-sky, etc.).Vastu Alignment Helps orient the house correctly with respect to North, East, South, and West. Utility Planning Defines placement of septic tanks, sumps, water tanks, garden, and service areas. Accessibility & Circulation Ensures proper driveway, pedestrian access, and parking arrangement.

🧭 3. Essential Details Shown in a Plot Layout Drawing

A good plot layout (for small or medium-size residential buildings) includes:

Category Details to Include Plot Information Plot dimensions (length × width), area in sq.ft or sq.m…

Small size Basic Schematic drawing need and details :

Here’s a full, practical explanation:

🧱 1. What is a Small Size Basic Schematic Drawing?

A basic schematic drawing is the first-level concept plan for a house or building.

It’s a simple line layout (not a detailed architectural drawing) that shows:

• The shape and size of the building,
•

• The orientation (North, East, South, West),
•

• The placement of rooms (living, bedroom, kitchen, toilet, etc.),
•

• The setbacks, parking, and entry/exit.

It’s usually made before detailed design or municipal submission — to fix orientation, space use, and Vastu compliance.

📌 2. Why You Need a Basic Schematic Drawing

Purpose Description Vastu Planning Ensures all rooms align with natural energies — e.g., kitchen in SE, master bed in SW, etc.Space Optimization Best use of a small plot area by efficient layout. Municipal Compliance Helps check if design fits bye-law norms (setbacks, open space).Client Discussion Easy for owner/architect to visualize before making a final plan.Cost Estimation Acts as a reference for preliminary costing.

📐 3. What Details It Should Include

A small schematic drawing (for, say, a 30’×40’ or 20’×40’ plot) generally includes:

Drawing Eleme…

Small size Basic Schematic drawing :

Here’s a full, practical explanation:

🧱 1. What is a Small Size Basic Schematic Drawing?

A basic schematic drawing is the first-level concept plan for a house or building.

It’s a simple line layout (not a detailed architectural drawing) that shows:

• The shape and size of the building,
•

• The orientation (North, East, South, West),
•

• The placement of rooms (living, bedroom, kitchen, toilet, etc.),
•

• The setbacks, parking, and entry/exit.

It’s usually made before detailed design or municipal submission — to fix orientation, space use, and Vāstu compliance.

📌 2. Why You Need a Basic Schematic Drawing

PurposeDescriptionVāstu PlanningEnsures all rooms align with natural energies — e.g., kitchen in SE, master bed in SW, etc.Space OptimizationBest use of a small plot area by efficient layout.Municipal ComplianceHelps check if design fits bye-law norms (setbacks, open space).Client DiscussionEasy for owner/architect to visualize before making a final plan.Cost EstimationActs as a reference for preliminary costing.

📐 3. What Details It Should Include

A small schematic drawing (for, say, a 30’×40’ or 20’×40’ plot) generally includes:

Drawing ElementDescriptionPlot boundar…

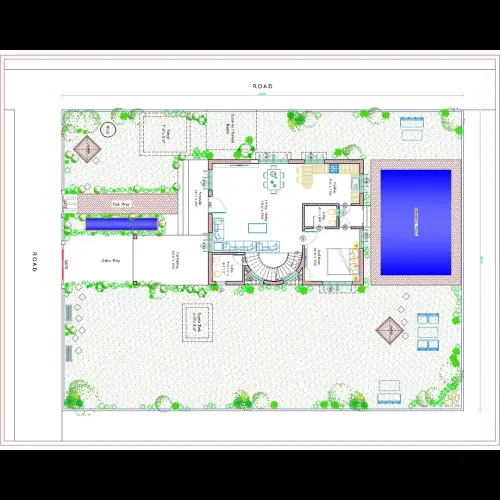

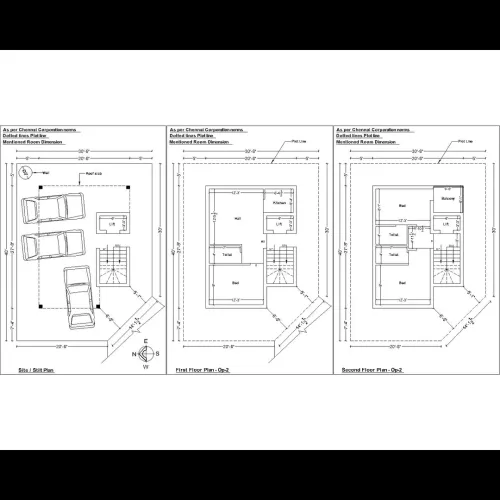

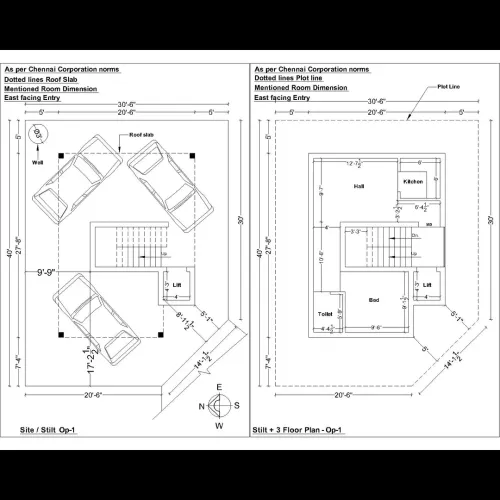

Site / Stilt Floor Plan :

A Site Plan is a top-view drawing showing the entire plot of land and how the building sits on it.

It provides a clear idea of orientation, setbacks, access, and surrounding infrastructure.

Need / Purpose:

• To show building placement within the site boundaries.
•

• To comply with building bye-laws (setbacks, FAR, coverage).
•

• To indicate entry/exit points, roads, open spaces, and landscaping.
•

• To plan drainage, water supply, sewage, and rainwater harvesting.
•

• Required for building plan approvals by municipal authorities.

Typical Details Shown:

• North direction (orientation)
•

• Site boundary and dimensions
•

• Road abutting the site (with width)
•

• Building footprint and setbacks on all sides
•

• Entry/exit gates, driveways, and parking
•

• Water tank, septic tank, soak pit
•

• Electrical room, transformer yard (if applicable)
•

• Landscaping / green areas
•

• Ground coverage and plot area table

🏢 2. Stilt Floor Plan

Definition:

A Stilt Floor is the ground level floor kept open (partially or fully) for parking, circulation, or building services, while the main building floors start above it.

Need / Purpose:

• To provide vehicular parking space without increasing building height.
•

• To ensure proper ventilation and…

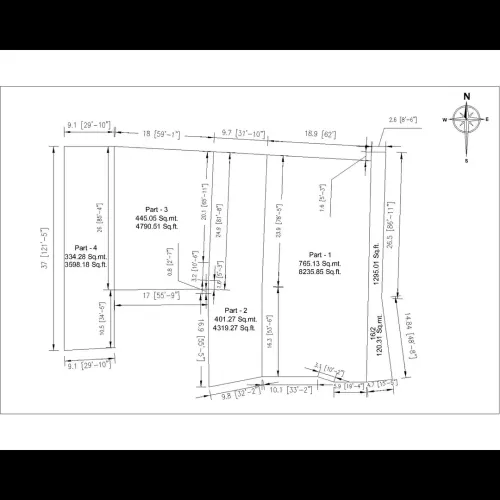

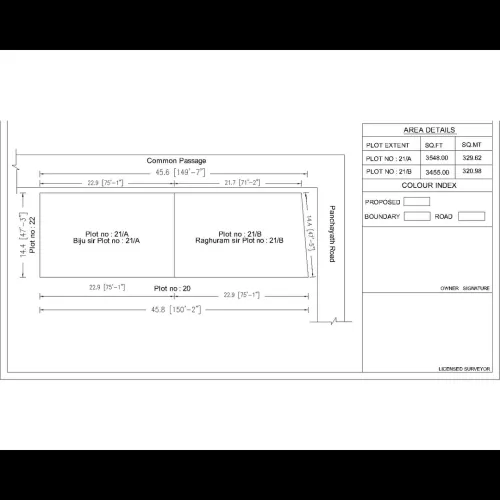

Dtcp Subdivison drawing :

A DTCP Subdivision Drawing (or layout plan) is an official land division plan prepared to obtain DTCP approval for converting a large piece of land into individual residential or commercial plots.

It ensures that:

• Roads, drainage, and open spaces are properly planned,
•

• Each plot follows government regulations, and
•

• The development is legally recognized for registration and construction.

2. Purpose

• To convert parent land into approved plots (for sale or housing).
•

• To ensure planned urban development.
•

• To show all infrastructure details and dimensions as per DTCP norms.

3. Documents & Details Required

Before preparing a subdivision drawing, the following details are needed:

RequirementDescriptionSite DetailsSurvey number, village, taluk, districtTotal Land AreaIn square meters or acresOwnership DocumentPatta / Sale deed / Title deedExisting FeaturesRoads, trees, wells, drains, electricity poles, etc.Proposed PlotsNumber and size of each plotApproach RoadWidth and connection to public roadInfrastructure PlanWater line, drainage, streetlight locationsNorth Direction & ScaleMandatory in the drawing

4. Components in a DTCP Subdivision Drawing

ItemStandard (varies by…

Reasonable Scheme plan Drawing details :

A Reasonable Housing Scheme (also known as an Affordable Housing Scheme) is designed to provide economical and well-planned housing to people with low or middle incomes.

The goal is to ensure “Housing for All” — safe, sustainable, and cost-effective homes.

2. Objectives

• To provide affordable and decent houses to the Economically Weaker Section (EWS), Low-Income Group (LIG), and Middle-Income Group (MIG).
•

• To optimize land use with efficient layout planning.
•

• To include basic facilities like roads, water, drainage, power, and sanitation.
•

• To promote sustainable and eco-friendly living.

3. Scheme Plan Drawing (Layout Description)

Here’s a conceptual plan for a small reasonable housing scheme:

Total Plot Area: 1 acre (43,560 sq. ft)

Number of Units: 20 houses (ground floor units)

Layout Plan (simplified view):

 ----------------------------------------------------- | Road 15 ft wide | | H1 H2 H3 H4 H5 ← Row of 5 houses (20’x30’) | | | | Common park / community area (30’x40’) | | | | H6 H7 H8 H9 H10 ← Second row, behind park | | | | Internal road (12 ft) | | H11 H12 H13 H14 H15 ← Third row | | | | Drainage line + Water supply line on both sides |…
